Bogert Aviation 15X Strut Service Tool

From $31.00 to $831.00
Product Description PN Price Buy
15xStrut Service Tool
12-16700
$831.00 Add to cart for current price
Quantity
15X Nitrogen Adapter KitNitrogen adapter makes using bottled nitrogen efficient. Made in the USA
12-02016
$65.00 Add to cart for current price
Quantity
Check ValveReplacement check valve for 15X pump.
12-03580
$31.00 Add to cart for current price
Quantity
Slide ValveReplacement slide valve for 15X pump.
12-03581
$87.00 Add to cart for current price
Quantity
7 ft hose includes Gooseneck FittingReplacement hose for HX or 15X strut pumps. With Gooseneck fitting.
12-03583
$170.00 Add to cart for current price
Quantity
15x Replacement Gauge.Replacement Gauge for 15X strut pumps.
12-03585
$51.00 Add to cart for current price
Quantity
Subtotal $0.00
Add to Wishlist

Overview

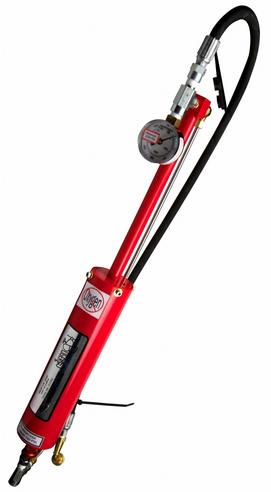

The 15X Strut Pump was designed for high pressure output. It is a pressure multiplier pump that is used to pressurize aircraft landing gear struts, and other high pressure applications. The 15X strut pump is able to boost air or nitrogen to 2250psi or 15 times the inlet pressure.

Simply hook up the output hose to the strut and the inlet to a pressure source such as shop air or regulated nitrogen. Cycling the slide valve forces a single precise shot of high pressure air into the strut. Operator raises pressure in increments, maximizing control and minimizing chance or over-pressure.

More than enough pump for most aircraft.
Boost Air or Nitrogen to 2250psi.
Built for shop use or for a discriminating do-it-yourselfer.
Weighs less than 10 pounds. Shipping weight of 15lbs (due to packaging).
Equipped with a 36 hose.
Comparable to pumps priced in the thousands.
Nitrogen adapter makes using bottle nitrogen efficient. (Nitrogen adapter sold separately)
Made in the USA.

Reviews

Well worth it.

Wood W Verified Purchase

NITROGEN ADAPTER KIT

May 5, 2022

Works great, I love it.

Wood W Verified Purchase

BOGERT 15X STRUT PUMP

May 5, 2022

Neat product. Simplifies pumping up struts.

Orlo E Verified Purchase

NITROGEN ADAPTER KIT

April 12, 2022

It works !

Don H Verified Purchase

BOGERT 7 FOOT HOSE W/ GOOSENECK FITING 19M-7HWG

November 23, 2021

Works great on my 310. You do not need adapter to use nitrogen - with the adapter, compressed air is used to drive the main piston to increase nitrogen pressure in to the strut - Without the adapter, Nitrogen drives the piston and is then expelled/wasted on the return stroke. The adapter eliminates the wasted gas being expelled on the return stroke but is otherwise not needed..

Jrh
June 9, 2018

Works better than advertised. Buy the nitrogen adapter.

Jim M
February 23, 2013

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this have a built in pressure gauge? Will it work without a compressor? Is the connector supplied with unit?

Yes, it has a built in pressure gauge. The unit will not work unless it is connected to a shop air tank with regulated pressure between 80psi and 150psi. The pump is shipped ready to use for air only or nitrogen only operatiion. To operate in air/nitrogen mode, an adapter must be installed (See Acessories).
