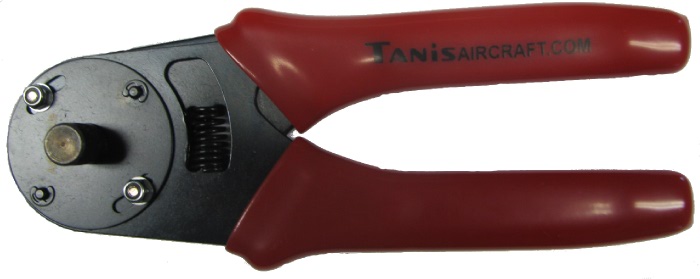

Tanis Octadent 4 Way Indent Crimp Tool

$60.00/Each
Quantity
Add to Wishlist
Part# 05-14876
MFR Model# TAU02793

Overview

4 Way Indent (Octadent) Crimp Tool

Ratcheted hand crimp tool for certain solid D-subminiature contacts. *Contacts length must be 0.73 to 1.20 inch [18.542 to 30.480 mm]. For use with wire gauges 16 thru 22 AWG.

Works for all Tanis DT series connectors.

TOOL CALIBRATION INFORMATION REFERENCE: Use Minimum +-0.0005 Tolerance steel gage pins DO NOT CRIMP GAGE PINS. Close die (hold closed for maximum crimp); Then use gauge pins.

GO is 0.040 inch [1.016 mm] NO GO is 0.050 inch [1.27 mm] Minimum distance of crimp location to edge of pin is 0.001 inch. Minimum distance of crimp location to edge of witness hole is 0.001 inch.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

This does not work on d-sub pins, and Spruce does not allow return of tools.

Daniel C Verified Purchase

TANIS 4 WAY INDENT CRIMP TOOL FOR 16-22 AWG WIRE TAU02793

December 20, 2023

Magaero L Verified Purchase

TANIS 4 WAY INDENT CRIMP TOOL FOR 16-22 AWG WIRE TAU02793

April 25, 2023

easy to use and worked perfectly. The price is great.

William C
April 3, 2020

Looks good. Cant find who to check calibration. Depth setting doesnt seem to work with the Garmin pins I have. Have to do it manually.

Montana A Verified Purchase

TANIS 4 WAY INDENT CRIMP TOOL FOR 16-22 AWG WIRE TAU02793

June 30, 2021

The crimp is a little light on some pins, but overall a decent tool for the money.

Baxter R Verified Purchase

TANIS 4 WAY INDENT CRIMP TOOL FOR 16-22 AWG WIRE TAU02793

May 21, 2022

This crimper does NOT work on the smaller dsub pins. Waste of money. I ended up soldering the wires to the pin.

Fred
September 20, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this properly crimp male 22-24 pins for dsub Garmin connectors P/N: 11-12111?

Per Tanis: This is designed to be used with Tanis connectors, they could not guarantee that it would work with other connectors.
