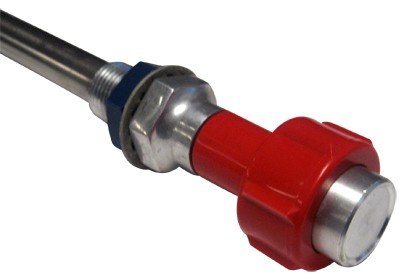

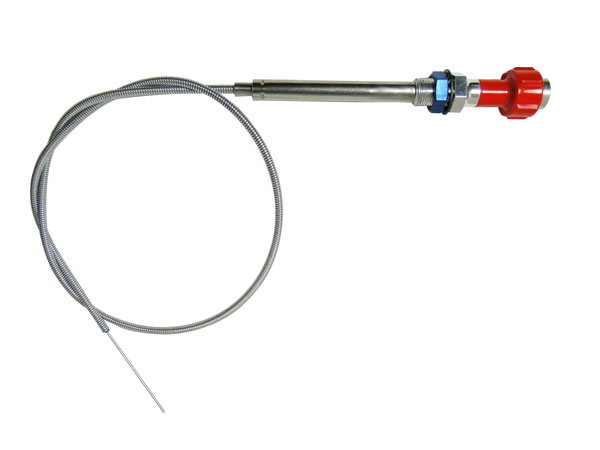

A-790 Vernier Control - Red

Select Size:
36-Inch48-Inch60-Inch72-Inch84-Inch96-Inch
Quantity
Add to Wishlist

Overview

The A-790 vernier control has a .078" dia. stainless steel wire core. Both the wire and Teflon™ lined flexible casing may be shortened as required. The Teflon™ liner provides low friction with heat resistance in high temperature areas such as engine compartments. Furnished with FAA-style knobs (Black, Red & Blue). Max. travel: 3-3/8". Stocked in the following lengths (measurement taken from under the panel nut to end of wire with knob pushed in).

Made in USA
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Looks like good quality. Looking forward to installing it.

John P Verified Purchase

A-790 CONTROL 36" RED KNOB

November 1, 2022

Great product, straight forward installation.

Av80r L Verified Purchase

A-790 CONTROL 48" RED KNOB

October 5, 2022

Installation was easy, and was a quality product just as expected. It even came with a tag reminding me not to pull it out too far, which would be easy to do, because a small ball will fall out and it could be difficult to replace.

Brian S Verified Purchase

A-790 CONTROL 48" RED KNOB

December 8, 2021

This mixture control is high quality and works smoothly. The price compared to other more well know brands is extremely reasonable! Well worth the price! Would buy again!

Michael B Verified Purchase

A-790 CONTROL 60" RED KNOB

June 17, 2021

Amazing quick delivery

Wim J
June 5, 2020

Looks good

Dave B
November 25, 2019

Very well made and Teflon lined so the operation is very smooth. A very large-diameter wire so it does not necessarily fit where the old one came out, but easy modification made it work perfectly.

Al B
September 14, 2018

Because of limited space between the firewall and the carburetor mixture control I had to go with this cable. The usual swivel 2-piece end from the regular vernier control was too long and didnt have enough space in front of the firewall to mount the adel clamp! This control works in that tight situation. Just silver brazed the wire end into a drilled out SS 10-32 screw section. One warning, because of the stiffness of the solid wire and wound spring sheath the bend radii have to be large!

David
June 22, 2019

Inner solid wire broke at 1500 Hrs.. ^(

Ron V
May 19, 2017

Liked the way it looked when i ordered it and needed something heavy duty but this was not it , recieved the item and the inner cable was broken right out of the box.Now i have to reorder something else.

James T
July 2, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these cables FAA-PMA'd?

No, the cables on this web page are not approved. We do carry one that is approved by the same manufacturer. The part number is A-790-12, and it is approved for some Cessnas.

Q: What is the outside diameter of casing of the A-790 vernier control? In order to use cable safe products.

The outside diameter of the casing is 1/4".

Q: What is the panel mount hole size diameter for the ACS A-790 vernier control?

The panel hole size should be 3/4" in diameter.

Q: What is the diameter of the plastic knob, specified either between the tactile ribs or the complete OD including the tactile ribs?

1.4063" complete OD including tactile ribs.

Q: Is there a physical difference between the approved and non-approved version?

No, there is not.

Q: Is the fine tuning done on the A-790 control by twisting the Handle (like a real Cessna Mixure)?

Yes, it can be fine adjusted by turning the knob.

Q: What is the OD of the outer spiral winding at appliance end on the A-790 vernier control?

1/4" OD.

Q: Can the sheath and cable be trimmed down in length if the old model falls between selectable sizes?

Yes, they can be.

Q: Can the A-790 VERNIER CONTROL solid inner cable be removed from the outer casing so that the casing can be cut, or must the casing be cut with the inner cable in place?

Yes. It can be pulled out completely. There is a small ball bearing that will fall out when you do, make sure not to lose that part.

Q: Is this A-790 control FAA Approved for certified aircraft?

No, this is not FAA Approved. Only the A-790-12 is approved. Please search for that part number on our website for the FAA Approved unit. On that page, it will list applicable models.
