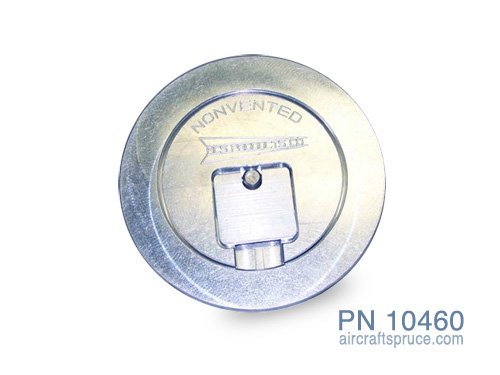

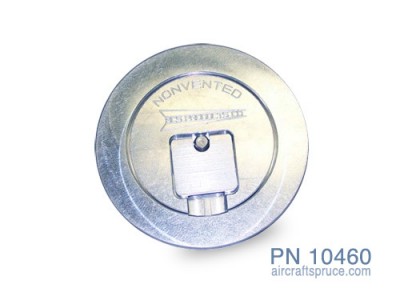

ACS Flush Fuel Cap 10460

Add to Wishlist
Part# 05-01390
MFR Model# 10460

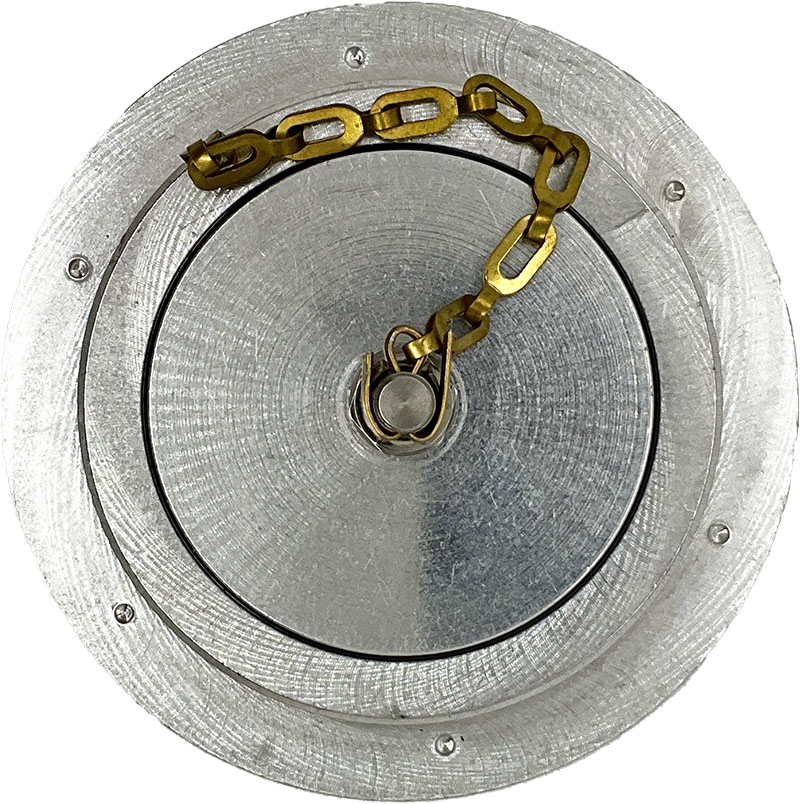

This latest modification of the ACS Flush Fuel Cap (unvented) utilizes a Viton O-Ring as the sealing element between the cap and mounting ring. The Viton O-Ring is compatible with aviation fuels and auto gas. The cap with Viton seal is interchangeable with the old-style cap with rubber gasket. Machined from solid aluminum. Ring may be welded, riveted, bolted or molded to the tank. The bottom of the cap is secured to the bottom of the ring by a safety chain to prevent loss of the cap in flight. Mounting ring flange is 1/8" thick. Ring opening is 2-5/8" dia. Overall dia. 4-3/8".
Made in USA.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed


I actually use these for my fiberglass motorcycle tanks I design and manufacture. And have for almost 2 decades. The quality has never varied, and there has never been a customer complaint about them.

John A
October 21, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Dimensions of mounting flange (1/8 thick, 4.375 OD, 2.625 ID) - how about filler neck depth?

Per supplier: The filler neck is not included with this fuel cap. There is the cap and a mounting ring only. I think what the customer was referring to is the depth of the mounting flange which is .66".

Q: VITON O-RING REPL 10458 #05-01392. Is this the replacement O-ring for the cessna flush mount fuel caps? Thanks.

No, this is the replacement o-ring for the ACS fuel caps P/N#'s 05-01390/05-01391.

Q: Does the receptacle come with it?

Yes, it does.
