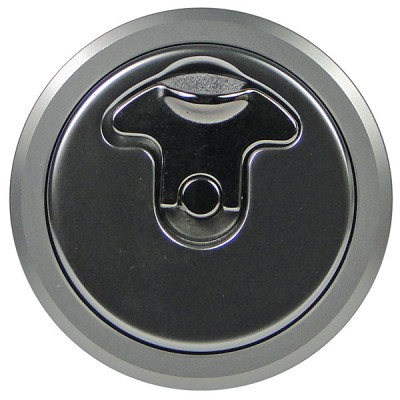

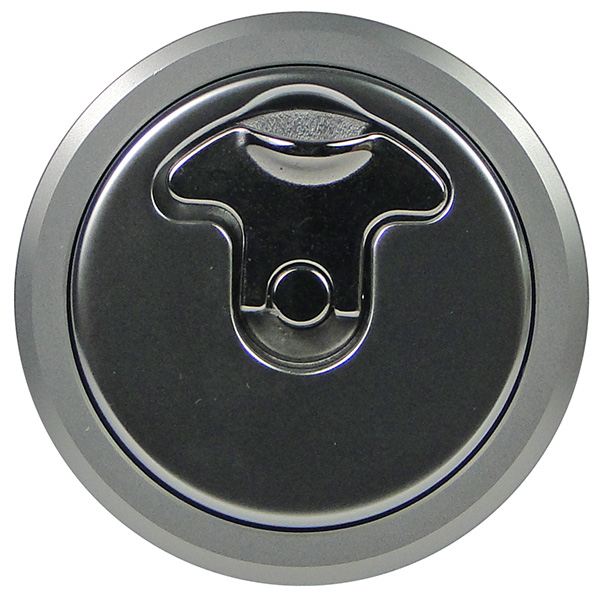

These English fuel caps are used on most of the worlds 'super cars' and bikes, and some series production aeroplanes. They are beautifully made in forged and bright anodized aluminum. The high precision and easy to operate mechanism is very secure and non vented. They are designed to keep the fuel in and the water out.
The lock is there to ensure that your tank is free from contaminants. Aero caps are used on CAP, Cirrus, Diamond, Lancair Columbia, Lancair kits, Nemesis, Vans, Velocity and many more aircraft. Cap assemblies come complete with cap, gasket,
and flanges as ordered. Two keys come with the locking version. Fixing can be by rivet, bolt, weld or glass in as appropriate. These are flush caps of outstanding quality which are ideal for virtually any homebuilt aircraft. Order the attach ring separately as needed. The 300 Series is 3-3/4" OD opening 1-3/4", 6 hole 3" pcd. C37 fits 2” and 2.25” Hoses.

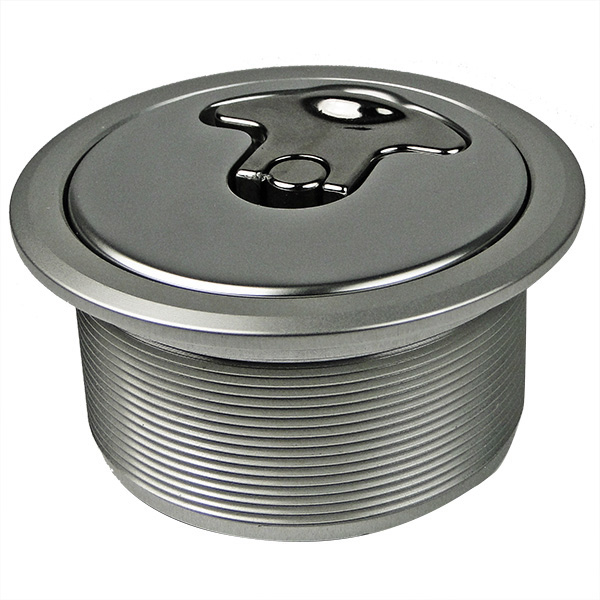

Caps for fuselage and wing tanks. For separate fuselage and wing tanks, we offer a screw-in flange to fit a 2.25 this has a 1" thread. This gives a flush fitting outside the skin, avoiding doors and internal spillage. Ideal for all wooden airplanes (e.g. Falco). Good for smoke oil tanks.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Excellent quality. Replacement for a cap that would leak during inverted flight.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The threaded g/s flange with this fuel cap is 2 5/16 diameter and is a UNC thread with 18 tpi.
You must mention you need matching keys at the time of the order of two caps. We can check stock, and if we do not have any that match, we will have to special order.
