STABILIZER JACK SCREW ACTUATOR KIT FOR CESSNA 180, 182 AND 185 AIRCRAFT

1 Review 3 Answered Questions
$1852.26/Each
Quantity
Add to Wishlist
Part# 05-06467
MFR Model# 1111

Overview

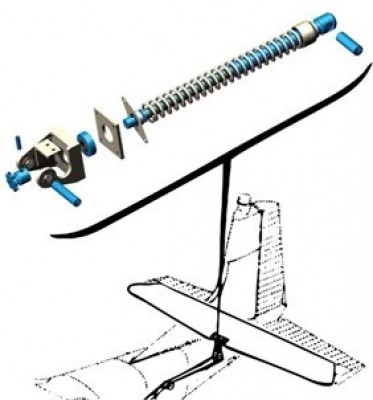

This is a FAA-PMA/STC Stabilizer Jack Screw Actuator Kit for Cessna models 180, 180A-K, 182, 182A-C, 185, 185A-E, and A185E-F aircraft. Directly replaces the original Cessna assembly.

The original low-grade steel components have been replaced with duplex stainless steel for extreme corrosion resistance even in a harsh saltwater environment. This high strength stainless steel was developed by the British for under-sea concrete reinforcing. Saltwater does not have any effect on this steel. Precision bearings are used with precision machining to reduce free play, while using extra-low temperature grease for easy turning in low temperatures. For improved strength and reliability, McFarlane redesigned the sprocket and retaining collar to allow for the use of a 5/32" roll pin for attachment, as opposed to the 3/32" roll pins originally used. This more than doubles the strength of the design. Bushings and a stainless steel chain with connectors are included.

Documents

In The Box

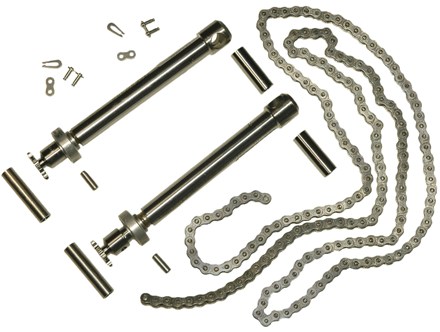

  • Stabilizer jack screw actuator kit includes all parts required to replace the following Cessna parts in both the left-hand and right-hand actuators:
    0310332 Sprocket
    0432138-3 or S2295-25-185 Chain
    0712500-7 Collar-retainer
    0712500-10 Bushing
    0712500-11 Screw bar
    0712500-13 Barrel
    0712500-19 Plug
    0712502 Bushing, eccentric
    MS20201KP6A or AN201KP6A Bearing
    NAS561-3-8 Roll pin

Reviews

Submit a Review

The mcfarlane jack screw kit for the 180/185 is 10x nicer then the original product.

Matt
January 20, 2021

Q&A

Submit
Q: I just bought this kit from you. Does it require boots like the old jack screws? Do I lubricate it?

Yes, you would need to use boots. It will be the same as the original. If you would like a new boot, this will be P/N# 05-07015. You can use low temperature grease MIL-PRF-23827 on this.

Q: Does this kit include one or two jack screws?

You would need only 1 kit per aircraft.

Q: Does this kit have the updated Black Maxâ„¢ nitrocarburized screw assembly?

Yes it is nitrocarburized.
