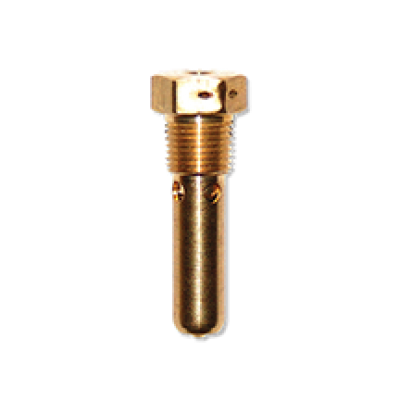

Curtis Fuel Valve CCA-2500

$26.85/Each
Part# 05-04885
MFR Model# CCA-2500

Overview

Now FAA TSO-C76 Approved.

Brass Fuel Valves, Push to Open, Non-Lock Open, Use Pin Type Cup.
Use Curtis Drain Cup - CCA-39680.

Curtis Superior Valve is experienced in valve design and can help solve your valve problems. In most cases a standard Curtis Superior Valve will do the job. Or possibly a slight modification of a production unit will answer a specific problem. We will be glad to give you any assistance you may require with your Quick Drain Valve application.

MAINTENANCE / CMM

Curtis Superior Valves are designed for installation in a standard NPT port for NPT threaded valves or an AND-10050 stlye port for UNF threaded valves. Use a sealant on NPT threaded valves or a fuel resistant o-ring of the proper size for UNF threaded valves. Refer to aircraft manufacturers torque specifications for the aircraft in which it is being used. Curtis Superior Valves require no special maintenance. Keep them reasonably clean and replace according to the prescribed synthetic rubber maintenance schedule for the aircraft in which they are used or 10 year usable life per Curtis Superior Valve whichever occurs first. Curtis Superior Valves cannot be OVERHAULED. Replace the entire valve per the maintenance schedule of the aircraft in which it is used or usable life per Curtis Superior Valve should it begin to leak.

OVERHAUL

Due to the low replacement cost of Curtis Quick Drain Valves versus the cost of replacement seals, breakage of seals in overhaul installations and labor costs, it is not recommended they be overhauled. Replace the entire valve in accordance with the instructions in MAINTENANCE above or should they begin to leak.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

As mod to Cozy plans I am using the SDS EFI system - that means no gascolater in the engine compartment. This valve fits beautifully and flush at the forward drain of the strake mounted fuel tanks. Sump the tanks nose low and its still the low point of the fuel system.

Preston K
June 9, 2023

Douglas E Verified Purchase

Curtis Fuel Valve CCA-2500

April 7, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What thread size, please?

1/8 NPT FLUSH MOUNTED

Q: Do I need an O ring or gasket with this?

No gasket or oring is required.

Q: Is this CCA-2500 cadmium plated?

No they are brass.
