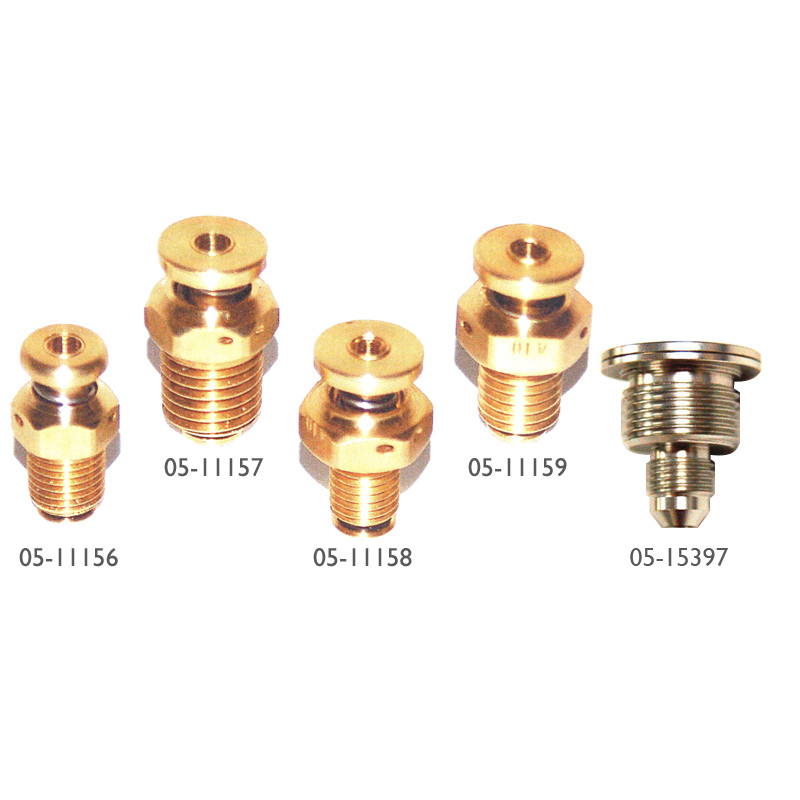

Curtis Push Type Fuel Valves

From $16.75 to $89.95
Model No. Thread Size Installed
Length
PN Price Buy
CCA-12007/16" 20 UNF1.220"
05-15397
$89.95
Quantity
CCA-18001/8" NPT.987"
05-11156
$16.75
Quantity
CCA-19001/4" NPT.955"
05-11157
$16.75
Quantity
CCA-20003/8" 24 UNF.987"
05-11158
$16.75
Quantity
CCA-21007/16" 20 UNF.987"
05-11159
$16.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Curtis Superior Valves are designed for installation in a standard NPT port for NPT threaded valves or an AND-10050 stlye port for UNF threaded valves. Use a sealant on NPT threaded valves or a fuel resistant o-ring of the proper size for UNF threaded valves. Refer to aircraft manufacturers torque specifications for the aircraft in which it is being used. Curtis Superior Valves require no special maintenance. Keep them reasonably clean and replace according to the prescribed synthetic rubber maintenance schedule for the aircraft in which they are used or 10 year usable life per Curtis Superior Valve whichever occurs first. Curtis Superior Valves cannot be OVERHAULED. Replace the entire valve per the maintenance schedule of the aircraft in which it is used or usable life per Curtis Superior Valve should it begin to leak.

Use Curtis Fuel Sampling Cup P/N CCA-39680 (05-17300) for Fuel Testing

Field Replaceable O'Rings     TSO C76 approval from the FAA


Valve Number
Valve Thread Spec.
CCA-1800
1/8 ANPT
CCA-1900
1/4 ANPT
CCA-2000
3/8-24 UNF-3A
CCA-2100
7/16-20 UNF-3A

FUEL VALVE & MANUFACTURERS CROSS REFERENCE


Curtis Part Number
Auto Valve
Part Number
Saf-Air Part Number
Curtis Stem Seal O'Ring
Mounting O'Ring
CCA-1800
BJ1000AS1MY
CAV-110
MS29513-007
None Req.
CCA-1900
BJ1000AS1MX
CAV-160
MS29513-007
None Req.
CCA-2000
1100B52Z
CAV-180
MS29513-007
MS29513-011
CCA-2100
1100B52Z-G
CAV-170
MS29513-007
MS29513-012
