K2U Piper PA28 / Pa34 Fiberglass Wing Tip Contoured 1973 & Up

From $441.00 to $441.00
Description PN Price Buy

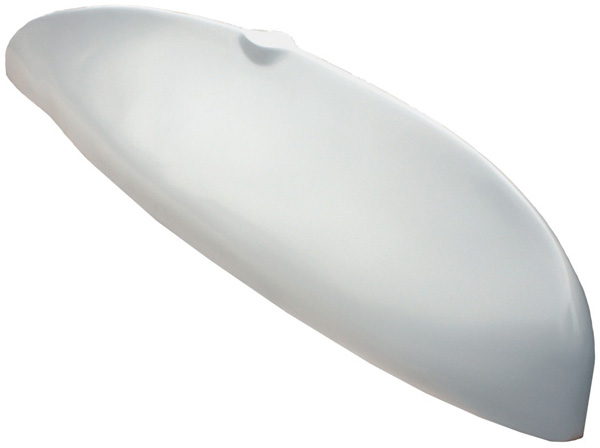

K2U PIPER PA-28 / PA-34 WING TIP LEFT 4 INCH NAV PAD
05-14684
$441.00
Quantity
K2U PIPER PA-28 / PA-34 WING TIP RIGHT 4 INCH NAV PAD
05-14685
$441.00
Quantity
K2U PIPER PA-28 / PA-34 WING TIP LEFT 6 INCH NAV PAD
05-14971
$441.00
Quantity
K2U PIPER PA-28 / PA-34 WING TIP RIGHT 6 INCH NAV PAD
05-14972
$441.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Piper PA-28 Cherokee wing tip by knots 2U. Replace Piper part 78022-00, 78022-000, 78022-22, 78022-022, 36761-02, 36761-002, 36761-08, 36761-008, 78022-01, 78022-001, 78022-21, 78022-021, 36761-03, 36761-003, 36761-09, 36761-009.

Approval Basis:

    FAA-PMA Approved
Replaces Piper Part:
    Left 78022-00, 78022-000, 78022-22, 78022-022, 36761-02, 36761-002, 36761-08, 36761-008.
    Right 78022-01, 78022-001, 78022-21, 78022-021, 36761-03, 36761-003, 36761-09, 36761-009.
Aircraft Eligibility Piper Models:
    PA-28-140, PA-28-150, PA-28-160, PA-28-180 S/N 28-7305001 and up,PA-28R-I80, PA-28R-200 S/N 28R-7335001 & Up, PA-34-200, PA-34-200T, PA-34-220T.
Finish:
    White primer, ready for paint
Specifications:
    Fiberglass laminate
