Cessna 182 Aluminum Spinners

Add to Wishlist
Part# 05-01901
MFR Model# U0752637K200

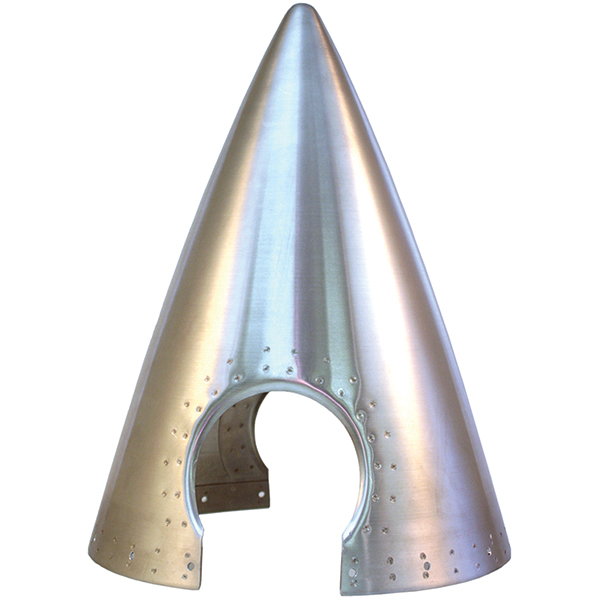

These aluminum spinners and spinner support spacers are FAA approved for installation on several models of Cessna 182 series aircraft using McCauley two blade constant speed propellers. The Spinner Dome replaces original Cessna p/n 0752637K200, 0752637-5 and 0752637-11. The Spinner Spacer replaces original Cessna p/n 0752620-1 and 0752620-3. The Spinner Dome is approved on the Cessna 182H, 182J, 182K, 182L, 182M, 182N, 182P, 182Q and the 182R. The Spinner Support Spacer is approved on Cessna Models 180H, 180J, 180K, A185E, A185F, 182E, 182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N, 182P, 182Q, 182R, 210-5 (205), 210-5A (205A), 206, U206, P206 and the U206A.
California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do the spinners have holes for the screws already or do I have to drill the holes?

Yes, these holes are already pre-drilled into the spinner.

Q: What diameter is this Cessna 182 Aluminum spinner?

The diameter of the spinner from the base would be 12-1/2".

Q: Do the spinner come as a kit with the spacer to just remove the old one and screw the new one on? Or do I need to buy something else to install it?

The dome includes 4 spacers. For additional approved spinner support spacers use P/N# 05-01902.

Q: Is there a screw kit for the installation of a new spinner?

There is not a screw kit for the installation of the spinner. The required hardware the customer will need to purchase is, NAS221-8 qty: 14 and AN3-4A qty: 12.

Q: Is this polished or does it require paint?

The spinner is not polished, so you can polish or paint it if required.
