Red Tail Airband Bent Antenna
Eligible for FREE Shipping
- JUMP TO
- Overview
- Features
- Reviews
- Q&A
- View in Catalog
Overview
|

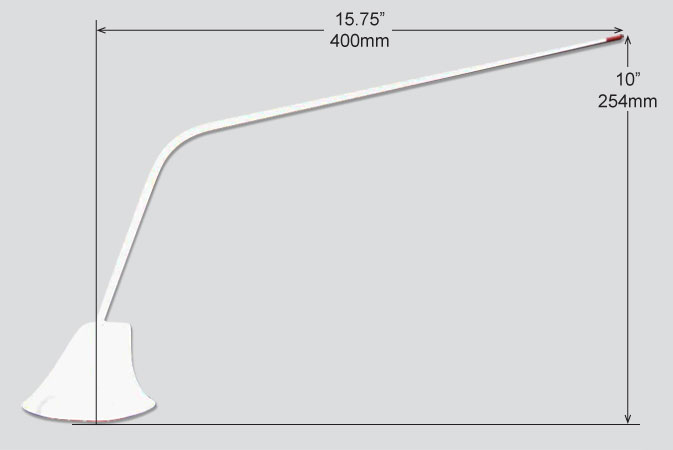

Bent (bottom) Airband Whip Antenna Non-TSO’d for Experimental aircraft Delta Pop Aviation Red Tail™ Antennas are the best non-TSO’d antennas we have found, with performance as good as the best TSO’d units. |
 |
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov |
Features
- Frequency - 118 to 137 MHZ
- VSWR - Less than 2.5:1 Measured with Anritsu Antenna Analyzer
- Polarization - Vertical
- Impedance - 50 Ohms
- Connector - BNC Female
- Element - Tapered Aluminum UV Resistant Powder Coated
- Configuration - DC Grounded To Reduce “P” Static
- Mounting - 8-32 x .437” long threaded studs
- Weight - 6.5 oz / 184 grams
- Finish - White Polyurethane
Reviews
Installed on bottom of T18 and lowest/best VSWR Ive seen very close to 1:1 across 118-136Mhz. Very happy with this antenna.
I installed this on the turtle deck of my Experimental Avid Mark IV . Once I got the turtle deck grounded properly this antenna worked exceptionally. I could hear other Traffic 70 plus miles away running it on an Icom handheld. Other traffic could hear me well also. I will be installing another one on my current project.
Great antenna looks good and works
I have this antenna and 3 others on my RV-8 from DeltaPop. Com Radio,Transponder and UAT performance is exceptional. They stand behind their product and service is above and beyond all my expectations.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes this this antenna will work with your MGL-V6 radio.
It has two mount studs.
This is a bottom mount antenna.
