Artex Wire Whip Antenna 110-324

$148.75/Each
Quantity
Add to Wishlist
Part# 110-324
MFR Model# 110-324

Overview

Black whip antenna with inductor. For use with 121.5 and 243 MHz. Designed for speeds up to 200 knots TAS.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Frequency: 121.5, 243 MHz &
  • VSWR: 2.0:1 Max for 121.5/243 MHz
  • Polarization: Vertical
  • Height: 17.4" Max
  • Connector: RF Connector, BNC Series (female)
  • Temperature: -55˚ C to + 85˚ C
  • Altitude: 50,000 feet
  • Air Speed: 200 Knots TAS
  • Color: Black

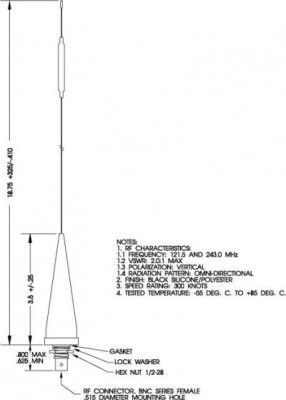

Drawing

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I ordered online and had an antenna shipped to the airport where plane was located, which was a different city than my home. Everything went perfect. Great service, no problems.

Garry B Verified Purchase

ARTEX WIRE WHIP ANT 110-324

April 14, 2023

This ELT antenna was purchased to replace the original one that was broken. Installation was a snap. I also tested it with an antenna analyzer and found the standing wave ratio (SWR) to be 1.0:1 on 121.5 mhz which is perfect resonance that will allow maximum distance to the alarm signal I hope I never need to use.

Reggie F Verified Purchase

ARTEX WIRE WHIP ANT 110-324

September 17, 2021

Works great

Flying 2 Verified Purchase

ARTEX WIRE WHIP ANT 110-324

September 14, 2021

Perfect fit. Fast shipping!

Dude
November 23, 2018

Good product

Russell
March 12, 2018

Reasonably priced product. The previous one on my Globe Swift obviously separated in flight from the base and was lost, so replacement was an easy process of undoing the old base and installing the new one into the same hole. I have no doubt the old one was quite old but hopefully this wont come apart like the last one.

Jim R
March 29, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this antenna aircraft spruce P/N 110-324, Artex P/N 465-9000? I need a replacement antenna for a Narco ELT 10. Thank you, Greg

ELT’s come with a TSO'd antenna in the box. Unfortunately, while the Artex Wire Whip Antenna is a TSO’d ELT antenna, we can not recommend using another type of antenna as it was not certified for the Narco ELT.

Q: Is this item the same as Artex p/n 455-9000?

No, Artex does not have any reference to p/n 455-9000. Part number 110-324 is an Artex part number.

Q: Will this Artex Wire Whip Antenna work on an artex 345?

The Artex 345 already comes with an antenna. According to the manual the only approved antenna is the one it comes with.

Q: My antenna for my Ameri-King 451 is missing. Is this a good replacement for the antenna? I know Ameri-King ELTs have an AD on them, so the option of replacing the whole unit is still on the table.

No, we recommend using the Rami AV-200 antenna.

Q: Since its the same frequency band and capable of handling transmit power can this antenna be used for a backup portable transceiver?

No, this antenna is specifically for the Artex ELT's only.

Q: Is this the same antenna as the E0115?

Although similar they are not the same antenna.

Q: Is this the correct antenna for an Artex 110-4 ELT?

Yes, for aircraft that are slower than 200 knots.

Q: Is this antenna for an Artex ELT ME406?

Per the install manual, part # 11-06978 is the ME406 whip antenna, part # 11-08597 is the ME406 rod antenna.
