Ats-400 Altitude Digitizer Test Set And Simulator

$1887.00/Each
Quantity
Add to Wishlist
Part# 11-09607
MFR Model# ATS-400

Overview

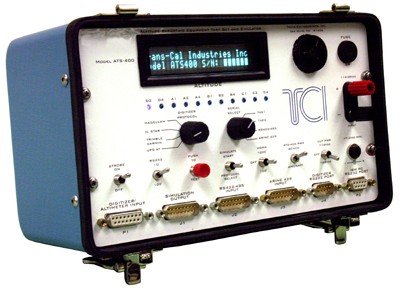

The Trans-Cal Model ATS-400 is designed to test, display and simulate the output of Altitude Reporting Equipment, which conform to the ICAO Standard for SSR Pressure Altitude Transmission. In accordance with the U.S. National Standards for I.F.F. Mark X (SIF)/Air Traffic Control Radar Beacon System SIF/ATCRBS. The ATS-400 will also display the output of altitude reporting equipment which transmit serial data in either RS232, RS422, RS485 or ARINC 429 Label 203.

The ATS-400 utilizes an advanced RISC microprocessor to display the output of these devices in both numeric and binary forms, with an input altitude data range covering the full ICAO code from –1000 to +126,000 feet. The ATS-400 may be interfaced with an IBM PC for cross-reference and two-way data communication if required.

The ATS-400 can also function in a simulate mode providing altitude data on the ICAO simulate port (connector J1) and RS232 altitude data on a serial data port (connector J4). In this mode, the test set will output altitude data beginning at –1000 feet, then ascend at 6000 feet per minute to 126,000 feet. The ascent may be halted at any altitude by depressing the simulate toggle. The ascending count may be resumed by depressing the simulate toggle again. The ATS-400 in simulate mode, provides the avionics technician with a known good ICAO altitude code source for testing altitude inputs to transponders, GPS, MFD, auto-pilots and other navigation devices.

The ATS-400 may be used in the aircraft or on the bench making this an extremely versatile piece of test equipment.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Electrical:
    Input Voltage +7.5 to 35Vdc
    Input Current 400mA Max.
    Internal Fuse 2A fast blow.
  • Physical:
    Height with cover. 6.16”
    Width 5.68”
    Length 10.0”
    Weight 3.5 lbs.
  • Environmental:
    Operating temp. 0º to +50ºC
    Storage temp. -20º to +65ºC
    Humidity 90% Non-Condensing at 50ºC.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the ATS-400 test mode s transponders?

Per the manufacturer: The Trans-Cal ATS-400 part number 11-09607 does not test transponder output. This unit is designed to test altitude encoder input only. The ATS-400 will accurately test encoder input regardless of the type of transponder.
