Part# 11-04482
MFR Model# S01-05-R

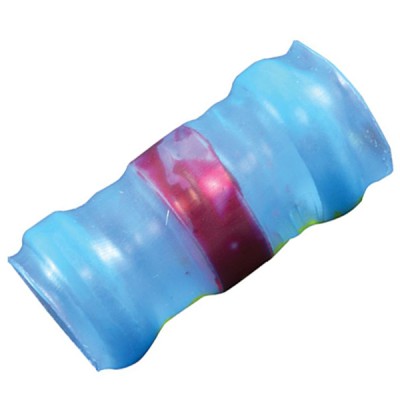

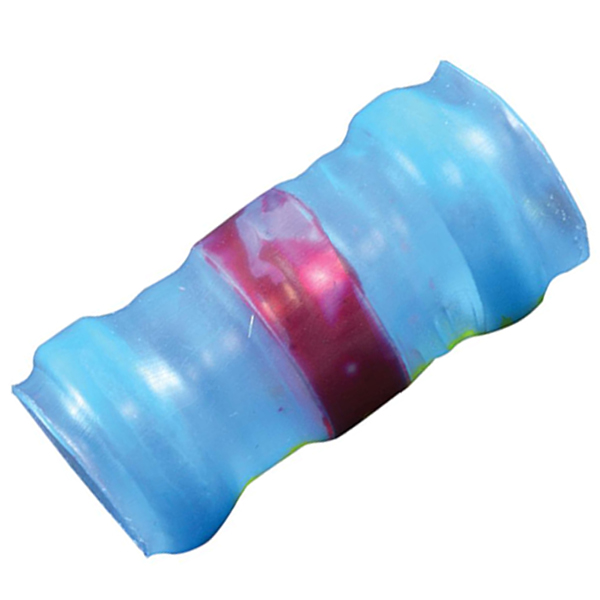

Raychem's Solder Sleeve one-step, heat-shrinkable wire and cable interconnection devices are a labor saving alternative to conventional wire and cable termination methods such as craft-sensitive, time-consuming, hand soldering or crimping. The one-step terminators create strong, soldered connections. They consist of a heat-shrinkable sleeve and a premeasured, fluxed solder band. When heated, the tubing shrinks and the solder melts, making reliable, insulated terminations.

M83519/1 Series.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed


I use these a lot! A tad bit more trouble to use that the crimp kind but way more secure & nest looking too. Sometime I’ll slide a heat shrink sleeve over when I’m done just for extra peace of mind.

February 15, 2021

great help for soldering the pigtail to the shielded cable

Eric A
September 7, 2017

I am building an experimental. Just found these little sleeves and I think a great invention to assist in wiring the headphone jacks. adding the pigtails for grounding the tefzel shield

Eric A
September 7, 2017

They work great, but do take quite a bit of heat to get the solder to melt.

July 5, 2020

Very necessary and they work but way too expensive

Alan C
April 14, 2021


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What size wire is appropriate for the .125" 11-07902 small sleeve?

For the .125" solder sleeve we recommend 24GA - 22GA wire.

Q: Do these sleeves come with the black and white stripped pigtail for grounding the shield?

No, see part number 11-12363 for solder sleeve with pigtail.

Q: what size solder sleeves do you have for 12 and 14 AWG? It would be for soldering 12 AWG to 12 AWg and 14 AWG to 14 AWG

The part numbers 11-04481 or 11-04482 will work
