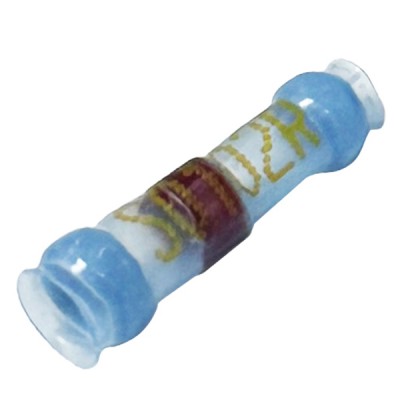

Raychem's Solder Sleeve one-step, heat-shrinkable wire and cable interconnection devices are a labor saving alternative to conventional wire and cable termination methods such as craft-sensitive, time-consuming, hand soldering or crimping. The one-step terminators create strong, soldered connections. They consist of a heat-shrinkable sleeve and a premeasured, fluxed solder band. When heated, the tubing shrinks and the solder melts, making reliable, insulated terminations.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
I first starting using these wonderful solder sleeves during my Garmin G3X installation and now use them everywhere.
RAYCHEM SOLDER SLEEVE .200"MD
I use these a lot! A tad bit more trouble to use that the crimp kind but way more secure & nest looking too. Sometime I’ll slide a heat shrink sleeve over when I’m done just for extra peace of mind.
great help for soldering the pigtail to the shielded cable
I am building an experimental. Just found these little sleeves and I think a great invention to assist in wiring the headphone jacks. adding the pigtails for grounding the tefzel shield
They work great, but do take quite a bit of heat to get the solder to melt.
Very necessary and they work but way too expensive
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For the .125" solder sleeve we recommend 24GA - 22GA wire.
No, see part number 11-12363 for solder sleeve with pigtail.
The part numbers 11-04481 or 11-04482 will work
