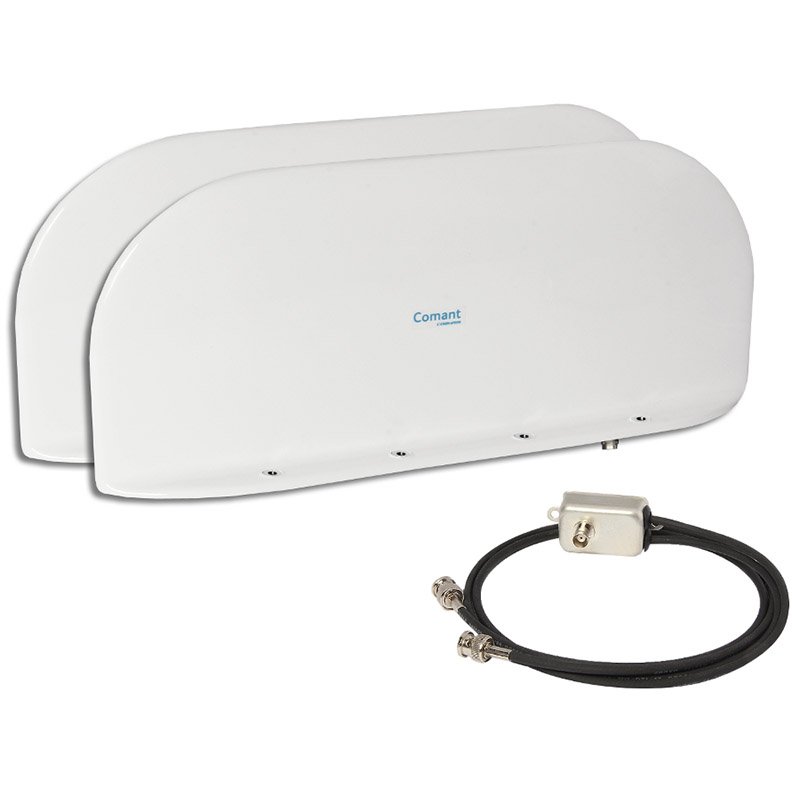

Comant 24-37-01 Antenna Kit

0 Reviews 0 Answered Questions
$4452.00/Each
Quantity
Add to Wishlist
Part# 11-19378
MFR Model# 24-37-01

Overview

Comant’s eight hole through mount blade style VOR / LOC / GS antenna pair with BNC ports. Provides a single coax cable run to the avionics location. Suitable for mounting on the aircraft vertical stabilizer with heavy fixed wing single engine / multi-engine and business jet aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Frequency: 108-118 MHz (VOR/LOC) 329-335 MHz (GS)
  • Polarization: Horizontal
  • Radiation Pattern: Omni Directional
  • Impedance RF: 50 Ohms Nominal
  • Power RF: Receive Only
  • System Weight: 2.8 lb
  • Height: 6.8 In
  • Finish: Glossy White
  • Connector: BNC / Single Output Combiner
  • Temperature: -55 C to +85 C
  • Altitude: 50,000 ft
  • FAA TSO: C34e, C36e, C40c
  • RTCA MOPS: DO-192, DO-195, DO-196
  • RTCA Environmental: DO-160D

Applications

  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Business Jet
  • Always consult your installation shop
  • for best application.

In The Box

  • Two blade sensor elements each with a BNC output connector.
  • One signal combiner to dual output with BNC connector and embedded coax cables.
