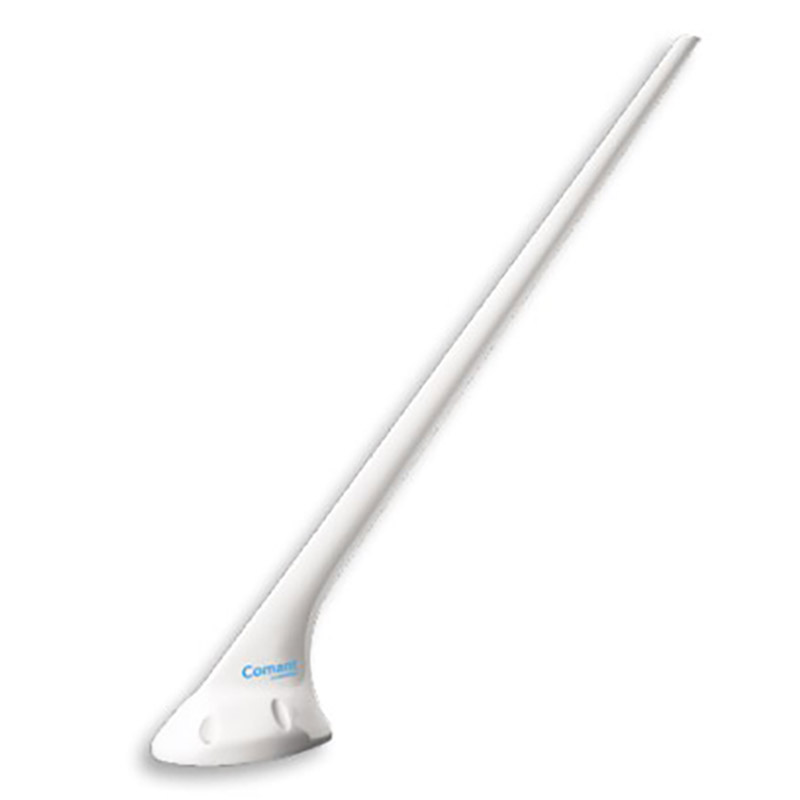

Comant Ci-2590-200 Comdat Vhf Com / Gps Waas Whip

$1492.00/Each
Quantity
Add to Wishlist
Part# 11-19418
MFR Model# CI-2590-200

Overview

Comant’s ComDat® four through hole whip style mount VHF / GPS WAAS antenna with BNC / TNC ports. This antenna covers both VHF communication and GPS frequencies. GPS C190 certified for class 3 LPV precision approaches. Designed to be used with 27 dB gain GPS panel Mount systems. Suitable for top mounting with light fixed wing single engine aircraft.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

  • VHF Specifications
  • Frequency: 118-137 MHz
  • VSWR: 2.5:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Omni Directional
  • Impedance: 50 Ohms
  • Power Rating: 50 Watts

  • GPS Preamplifier Specs
  • Frequency: 1575.42 +/- 10.23 MHz
  • VSWR: 1.5:1 Max
  • Polarization: RHCP
  • Radiation Pattern: Hemispherical
  • Impedance: 50 Ohms
  • Gain: 26.5dB Min / 32.5 dB Max
  • DC Voltage: 4 - 24 Vdc
  • DC Current: 40 mA Typical - 60mA Max
  • Noise Figure: 2.5 dB Max

  • Mechanical / Environmental
  • Weight: 0.75 lb
  • FAA TSO: C169 VHF / C190 GPS
  • RTCA Environmental: DO-160E
  • Connectors: VHF - BNC / GPS - TNC

Documents

  • Light Fixed Wing Single Engine
  • Heavy Fixed Wing Single Engine
  • Helicopter
  • Always consult your installation shop for best application.
