Commander 2000K

Select Model:
110v220v
Quantity
Add to Wishlist

Overview

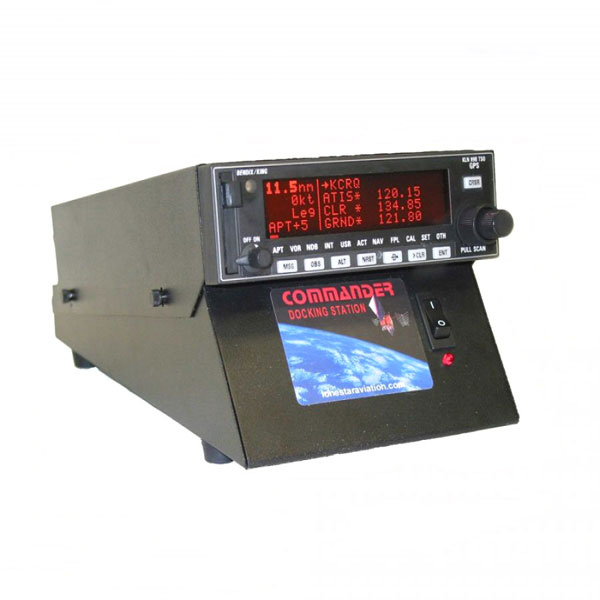

This high power unit is pre-wired in the "take home" mode. Slide your KLN94, KLN90A/B, KLN89/B, KLN35 Series, & KLX-135 Series GPS or GPS-COM, into the tray of the Commander 2000K and explore your GPS receiver as if you were flying. Practice your actual flight or approach at home, store flight plans, and learn all of your units functions. Update your units database via the internet using a desktop or laptop computer and save up to $300.00/year. Recommended by Allied- Signal in your operators handbook in the take home mode section. Appropriate connector is shipped free via UPS Blue Label from the factory. Additional connectors, cooling fan, Argus and moving map interface available.

Specifications

  • Input: 115 VAC. 60 Hz.
  • Watts: 20 Watts
  • Voltage/Amps 13VDC/1.5 Amps
  • Dimensions:4.6" (Height) 13.5" (Length) 6.125" (Width)
  • Weight: 6.5lbs

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I do not see the KLN 94 listed for this dock, will it work?

Per the manufacture, yes, you can slide in your KLN94, KLN90A/B, KLN89/B, KLN35 Series, & KLX-135 Series GPS or GPS-COM as the tray and connectors are only designed for these units.

Q: Regarding the previous question about the KLN94 - the picture shows the KNL94 installed! would yuu ask the manufacturer to clarify this? I operate the 89B and the 94 side by side, as do many others I am sure, so this is a very relevant point to clarify.

The KLN 94 can be installed using power cable part number 11-04879 and optional data cable part number 11-04882.

Q: Is this unit available for 220 or 240 volts input? (for Europe, UK etc)

The 220v version of the Commander is part number 11-04876.

Q: Do both of the cables come with the Commander 2000K unit?

This unit comes with power cable to power unit and GPS. You must provide type of GPS system at time of order to get the proper data cable, additional charge for correct data cable will apply.
