Garmin G3X Manifold Pressure 30 Psia Sensor Kit

$89.75/Each
Quantity
Add to Wishlist
Part# 10-05864
MFR Model# 494-30004-01

Overview

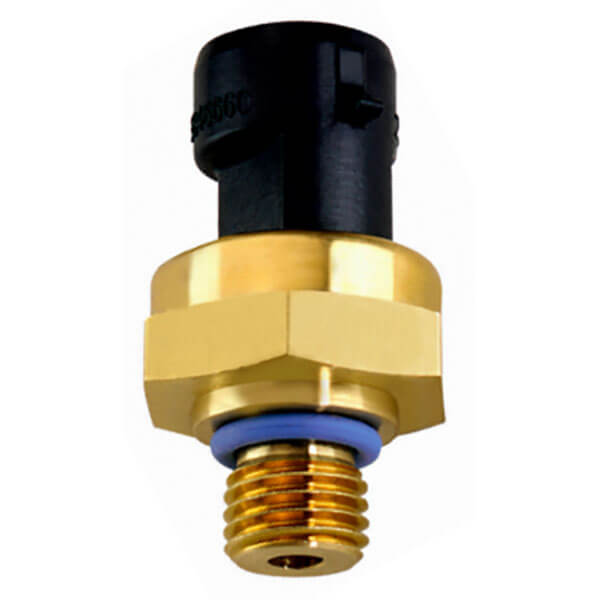

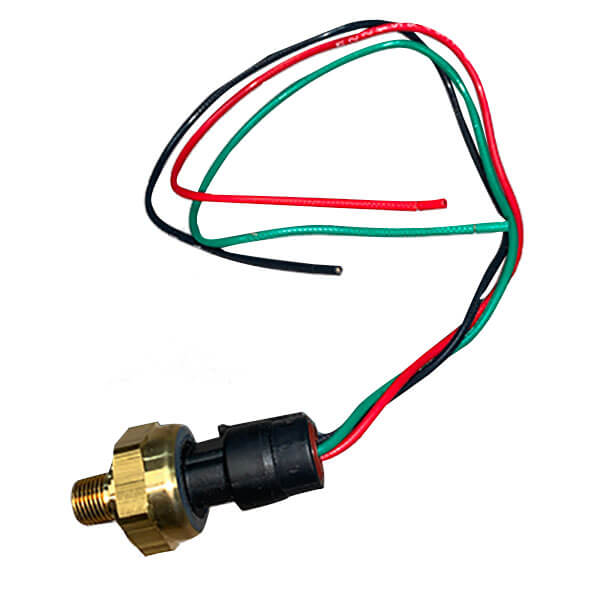

Garmin G3X Manifold Pressure 30 PSIA 1/8-27 NPT Sensor Kit.

The P4055 Pressure Transducer incorporates a back-side PRT configuration that is compatible with many types of liquid and gaseous media. This flexible product family can be supplied with a built-in Metri-Pack 150 electrical connector. The small sensor size is ideal for high volume applications. Pressure ranges may be customized for OEM applications. The P4055 is specified with pressure ranges measured in PSI.

Features

  • Small Size
  • Absolute, Gage or Sealed Gage Pressure References
  • Packard Metri-Pack 150 Electrical Connector Standard
  • 0.5 to 4.5 Vdc Output
  • High Vibration Tolerance
  • Superior EMI/RFI Performance
  • Available with NPT, G1/4, M10, & M12 Pressure Ports
  • Temperature Compensated
  • RoHS Compliant

Specifications

  • Pressure Ranges: 0 to 3 up to 0 to 300 PSI
  • Electrical Connection Packard Electric Metri-Pack: 150 Series
  • Pressure Connection 1/4-18 NPT: (external), 1/8-27 NPT (external)
  • Housing Material: Brass
  • Output Signal: 0.5 - 4.5 VDC

  • Pressure Ranges
    • Operating Life Cycle: min. 10 million full pressure cycles over the full range
    • Vibration Resistance: 10 Gs peak to peak sinusoidal, from 20 to 2000 Hz
    • Shock Resistance: 75 Gs sine wave
    • Drop Test: 1m onto concrete surface
    • Weight: ≤ 50 grams
    • Ingress Protection: IP67
    • Operating Temperature: -40C to + 125C
    • Environmental Temperature: -40C to + 125C
    • Storage Temperature: -40C to + 125C
    • Media: All class II fluids and gases compatible with brass and fluorosilicone

  • Electrical
    • Output Signal: 0.54.5 VDC ratiometric
    • Operating Supply Signal: 5 VDC 5%
    • Power Consumption: ≤ 25 mW
    • Overvoltage Protection: 16 VDC
    • Short-circuit Proofness: Yes *2
    • Insulation Voltage: 500 VDC
    • Reverse Polarity Protection: Yes *3
    • Impedance Min load: 25 kΩ
    • Response Time: ≤ 10 ms max. to 63% of full scale pressure with step change on input

Applications

  • Pumps & Compressors
  • Process Controls
  • Filter Restriction
  • Oil and Fuel Pressures
  • Water Management
  • Level Measurement
  • Test & Monitoring Equipment

Approvals & Certificates

  • CE Compliance: Pressure equipment directive 97/23/EC
  • EMC directive 2004/108/EEC, EN 61 326 Emission (Group 1, Class B) and Immunity
  • (industrial locations), EMI, ESD protected
  • ROHS: 2002/95/EC RoHS Directive
