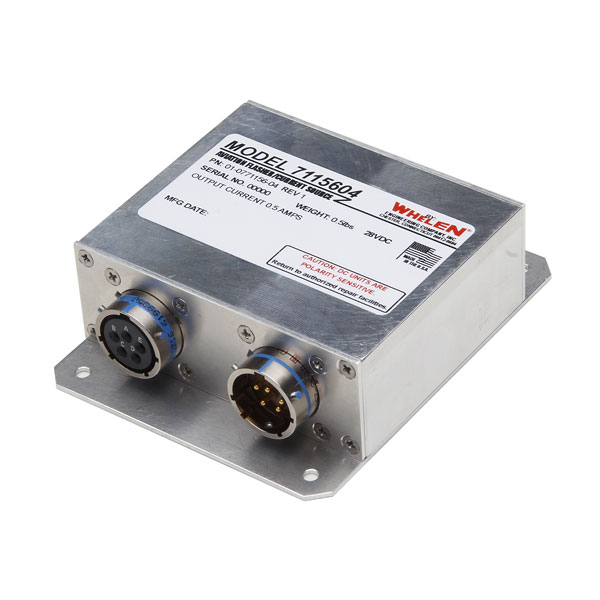

Whelen 71156 LED Flasher Assembly - 28V

$728.00/Each
Quantity
Add to Wishlist
Part# 11-16918
MFR Model# 01-0771156-04

Overview

Model 71156 Series is an electronic 'Pulse' light flasher for use with Whelen Taxi & Landing LED lightheads (catalog and custom versions). 71156 is being integrated into aircraft model upgrades and new type certified aircraft.

Flasher operates four outputs steady on or will allow two outputs to be flashed or steady independent of the other. MS Connectors with aluminum housing. Tested in accordance with RTCA/DO-160 Environmental Tests.

California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Lead, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Power Consumption: 20A max (all outputs) @ 28V
  • Weight: 1.1Lbs (499gm)
  • Length: 5.0 (127mm)
  • Exposed Height: 1.8 (46mm)
  • Width: 4.56 (116mm)
  • Flash Rate: 90fpm (Combined)
