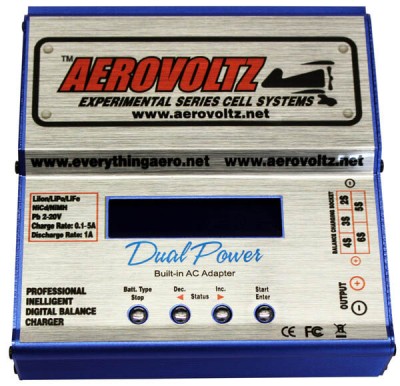

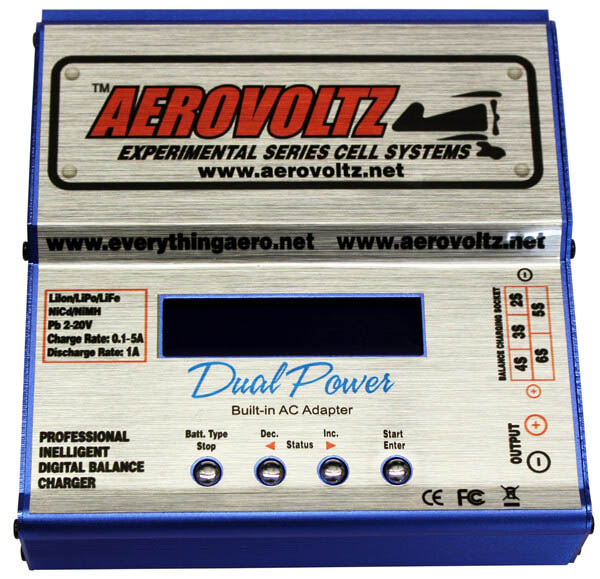

The Aerovoltz Battery Management System Balance Charger is the only charger on the market designed specifically to work with the Aerovoltz battery. The primary advantage to the Aerovoltz BMS Balance Charger is the balance charging function. The Balance mode balances the voltage of each cell or cell pack while charging. By balance charging your Aerovoltz Performance Battery you insure that the battery is operating at its maximum power. Periodic balance charging can also double the expected life of your battery. This charger is not required to operate your Battery, but it is highly recommended.
The only charger made to work with the Battery Management System.
Plugs directly into the batteries BMS port.
Able to balance charge all the cells individually for max power and durability.
Can double the expected life of the battery.
Has Charge, Fast Charge, Balance Charge, and Storage Charge Functions.
Operating Voltage Range: DC 11~18 V / AC to DC adaptor (DC 11~18V/5S)
Circuit Power: Max. charge power 50W / Max. discharge power 5W
Charge current range: 0.1~5.0A
Discharge current range: 0.1~1.0A
Current drain for balancing Li-po: 300mAh/cell
NiCd/NiMH battery cell count: 1~15 cell
li-ion/Polymer cell count: 1~6 series
Pb Battery Voltage: 2V~20V
Weight: 277g (Net Weight)
Maximum Voltage: 14.4 volt
Minimum Charged Voltage: 13.2 volts
Charged Resting Voltage: 13.2 volts – 13.7 volts.
Minimum Voltage: 9 volts
Standard Charge Rate Specifications: 2amps @ 13.2 volts until the battery reaches a maximum voltage of 14.4 volts
Proper Charging should be completed using an Aerovoltz Balance Charger or Lithium Rated Charger.
The charger should have an automatic cut-off at 14.4V to prevent over charging
If you are using an automatic charger, be sure it does not have an automatic “desulfication” mode. This is a lead-acid specific function that can damage the cells.
Some conventional automatic chargers have charging parameters based around lead-acid voltage specifications which are lower than Aerovoltz voltage specifications. If your automatic charger shuts off at 12.8 volts then it will never fully charge an Aerovoltz battery with a resting voltage of 13.2v
Do not charge an Aerovoltz Battery above 14.4 Volts. This will damage the battery. Resting voltage of a charged Aerovoltz battery should be between 13.2v – 13.7v.
Do not charge with an automatic charger in “desulfication” mode.
Do not allow the battery to be drained below 9.0V, this will damage the cells. If your vehicle has a parasitic draw like an alarm of similar devices, disconnect the battery when not in use. If the battery is allowed to be drained below 9.0V, it may not recharge to its maximum capacity. If the battery does become discharged, recharge immediately. If gets warm or hot during this process it has been damaged and is not safe to use.
Do not attempt to charge a Aerovoltz that is below 6.0Volts. A Lithium battery below 6.0Volts is considered dead and is unsafe to use.
Do Not use a battery that has been completely drained, it is no longer serviceable. Failure to follow this rule could lead to battery failure and serious damage to the vehicle and occupants.
Do not use a battery that is longer holding a charge: this battery has sustained damage to the chemistry at some point and is no longer safe to use.
Do not use a battery that is getting hot or warm to the touch during normal charging or operation. this battery has sustained damage to the chemistry at some point and is no longer safe to use.
Failure to adhere to these charging specifications or exceeding these limits may cause battery failure and will void any potential warranty claim.
Aerovoltz batteries behave differently in cold weather than traditional lead acid batteries. A traditional lead acid battery delivers maximum current at the first initial draw and then degrades from there. Aerovoltz batteries actually get stronger with each successive draw. In cold weather the Aerovoltz battery has the ability to generate its own internal heat energy by putting a draw on the battery. In practice, what happens is that in cold weather, the Aerovoltz battery may need to have a draw put on the battery several times before it is up to temperature and ready to deliver maximum amperage. We rate the Aerovoltz battery with an operating environment of 0°F (-18°C) to 140°F (60°C).
This charger is not needed to perform a balance charge. Any LiIo balance charger will work with the proper connections. This charger is for those who may not know how to build adapters etc for a common balance charger....
October 23, 2020
I could not get it to work . The instruction manual does not match the messages on the screen. The error messages that come up are not described in the manual.
The company does not answer their phone or email for several days. Aircraft spruce had no tech info on the products so I am shut down for an extra 2 weeks because I ordered it. I wish I had bought a battery from another company .
October 26, 2018
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Will this charger be able to balance the Aerovoltz 12 Cell AVO2?
Yes, the Aerovoltz balance charger kit will balance charge the 12 cell AVO2.
