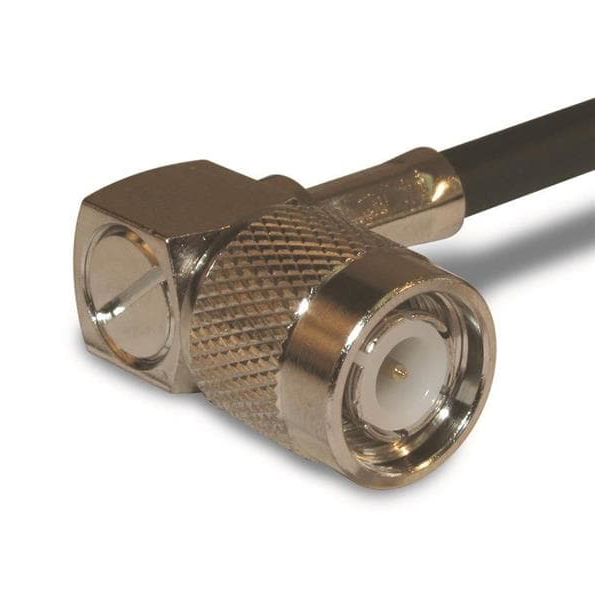

Amph enol TNC 122430 Male Right Angle RG 58

$6.85/Each
Quantity
Add to Wishlist
Part# 11-15371
MFR Model# 122140

Overview

RF Connectors / Coaxial Connectors TNC R/A PLUG NIC RG-58 LMR195.

Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

  • Product Category: RF Connectors / Coaxial Connectors
  • Manufacturer: Amphenol
  • RoHS: RoHS Compliant By Exemption Details
  • Product: Connectors
  • RF Series: TNC
  • Gender: Plug
  • Impedance: 50 Ohms
  • Maximum Frequency: 11 GHz
  • Termination Style: Cable - Crimp
  • Orientation: Right Angle
  • Mounting Type: -
  • Cable Type: RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A
  • Packaging: Bulk
  • Body Finish: Nickel
  • Body Material: Brass
  • Body Style: Right Angle
  • Brand: Amphenol RF
  • Contact Material: Brass
  • Contact Plating: Gold
  • Contact Termination: Solder
  • Coupling Mechanism: Threaded
  • Isolation Type: Not Isolated
  • Mating Cycles: 500
  • Series: TNC
  • Factory Pack Quantity: 1
  • Voltage Rating: 500 V
  • Part # Aliases: 319-0077 99H4733
  • Unit Weight: 0.776733 oz
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

This item was different in the way the center connector requires soldering. I prefer the connector with the crimped center pin.

Charles H Verified Purchase

AMPHENOL 122430 TNC MALE RIGHT ANGLE RG 58

September 2, 2021
