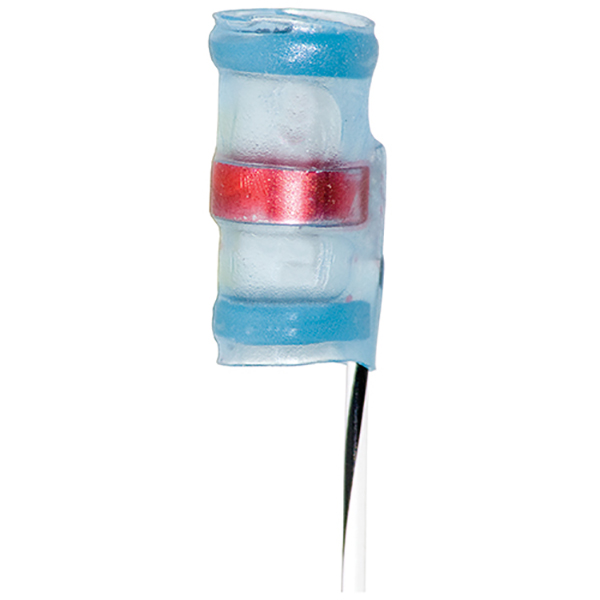

Sumitomo Solder Termination Sleeve With Lead Wire - 22 Awg

$1.15/Piece
Quantity
Add to Wishlist
Part# 11-18237
MFR Model# H-ML-8

Overview

STS solder termination sleeves provide the most reliable means of terminating a wide variety of coaxial cable types. Consisting of a heat-shrinkable, transparent, polyvinylidene fluoride jacket with an inner, pre-fluxed, solder preform and two thermoplastic sealing inserts. When heat is applied, the solder melts and flows to provide a superior connection between the ground lead and the shield. At the same time, the two thermoplastic sealing inserts melt and the outer sleeve shrinks to provide an environmentally protected termination. This H-ML series of solder jackets has a preinstalled ground lead wire.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Convection or infrared heated
  • Reliable, repeatable, inspectable
  • High performance outer sleeve
  • Transparent heat-shrinkable
  • Fluxed solder preform
  • Thermoplastic sealing ring
  • Immersion resistant

Specifications

  • Gauge: 22 AWG
  • Cable outside diameter range: .050 - .200 in
  • Heating method: Convection or infrared
  • Solder melting temperature: 183ºC
  • Operating temperature: 150ºC
  • Content: 37% lead, 63% tin
  • Specification: AS83519/2 (QPL listed product)
