ESD-1 STATIC WICK NON-CERTIFIED

$24.75/Piece
Quantity
Add to Wishlist
Part# 11-10574
MFR Model# ESD-1

Overview

Physical Characteristics: Fully Qualified to MIL-D-9129D

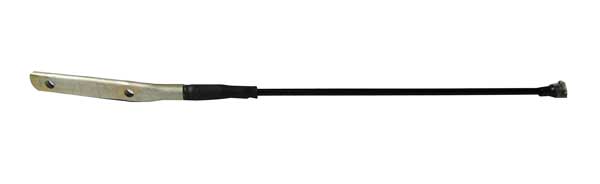

ESD-1 Static Wick

  • Length: (including mounting base) 7.65 inches. (discharger element) 4.75 inches
  • Distance between mounting holes: 1.1"
  • Weight: Less than 4.5 grams
  • Airspeed: To 150 knots
  • Altitude: To 20,000 feet msl
  • Temperature: +85C to -55C, MIL-STD0202C, Method 102A, Condition D
  • Tension: 50 pound pull longitudinal from plastic end to metal shank
  • Solvents: No physical changes after one hour immersion in aviation gasoline, jet fuel or hydraulic fluids
  • Equivalent to Cessna P/N C592001-0201

Note: This is Non-Certified Version.

Reviews

Luis L Verified Purchase

ESD-1 STATIC WICK NON CERT

November 10, 2021

Gail A Verified Purchase

ESD-1 STATIC WICK NON CERT

October 1, 2021

This was a replacement for a C172S. Same part and 1/4th the price of the other vendor.

Gary S Verified Purchase

ESD-1 STATIC WICK NON CERT

August 3, 2021

Cost way to high

Rex D
January 4, 2021

Exact fit on a 79 C-182 Q. No different than the certified part.

Ron G
November 30, 2020

They satisfy the intended purpose.

Alfredo O
June 24, 2020

As advertised.

S
April 29, 2018

This wick is shorter than the oem part and does not screw into the mounting bracket, The wick is fixed so that one would have to drill out the riveting to replace it. The cessna wick will unscrew from the mounting bracket.

John R
April 7, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Whats the difference between certified and non-certified versions of the ESD-1 Static Wick?

It depends on the aircraft it is being installed in. Non-certified version is intended for install in experimental aircraft. The certified version of the static wick is intended for certificated aircraft, ie Cessna, Piper, etc.

Q: What is the distance between the two holes on the ESD-1 static wick?

The distance is approximately 1.0938 inches center to center.
