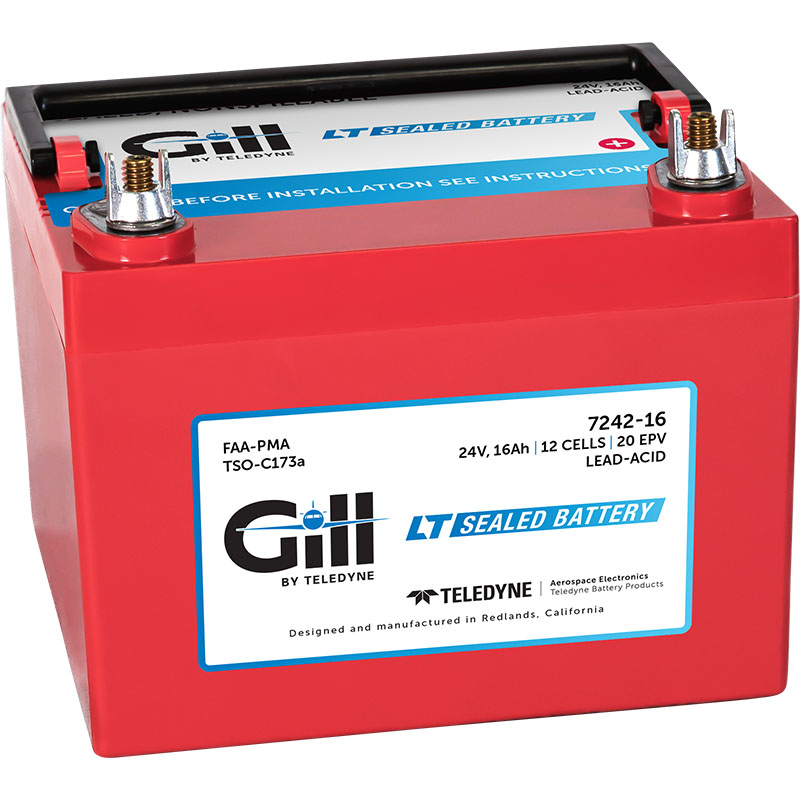

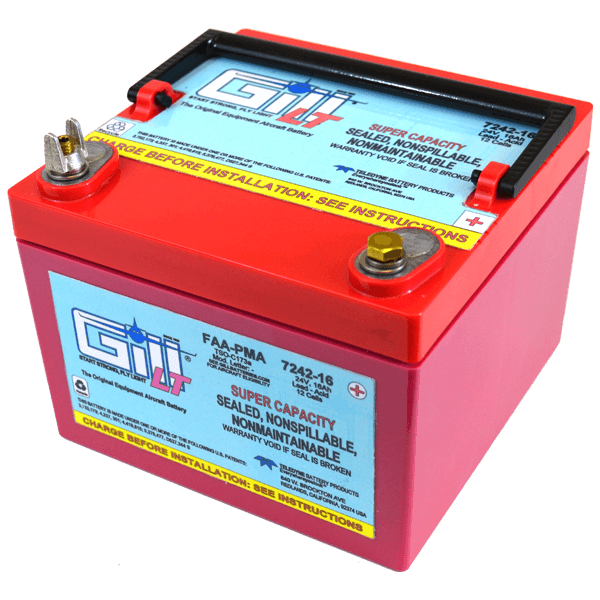

GILL® 7242-16 LT SUPER CAPACITY SEALED LEAD ACID BATTERY

$695.00/Each
Quantity
Add to Wishlist
Part# 11-17223
MFR Model# 7242-16

Overview

  • The 7242-16 is a “sealed lead acid battery upgrade” to the popular Gill® G-242
  • Maintenance Free –Shipped Fully Charged and No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Start strong with the Gill® 7242-16. See application chart to locate your aircraft and review your battery options.

MODEL VOLTS AMP HOURS 30 MINUTE CAPCITY BATTERY DIAGRAM
7242-16 24 16 25 Full Battery Specifications

Application Guide

Manufacturer Model
Cessna F152, FA152, F172N, FR172K, FR182Q, FR182, 152, A152, 172N, R172K, 177B, 177RG, 180K, 182Q,R182, A185F, A188B, T188C, T206H, TU206G, U206G, 207A, T207A, 210M, 210N, 210R, P210N,
T210M, T210N, T210R, 337H, FT337HP, P337H, T337H, T337H-SP
Beechcraft C23, C24R, F33C, V35B, A36, G36, D55, D55A, E55, E55A, 58TC, 58TCA, 76, 95-55, 95-A55, 95-B55, 95-B55A
Mooney M20J, M20K
Piper PA-31, PA-31-300, PA-31-325, PA-31-350, PA-36-285, PA-36-300
Socata Socata TB9, TB10, TB20, TB21, TB200

Specifications

  • Nominal Voltage: 24
  • Type: Sealed
  • Weight: 29.90
  • 1 Hr (C1): 16
  • 30 Min (2C): 25
  • Electrolyte: Not Needed
