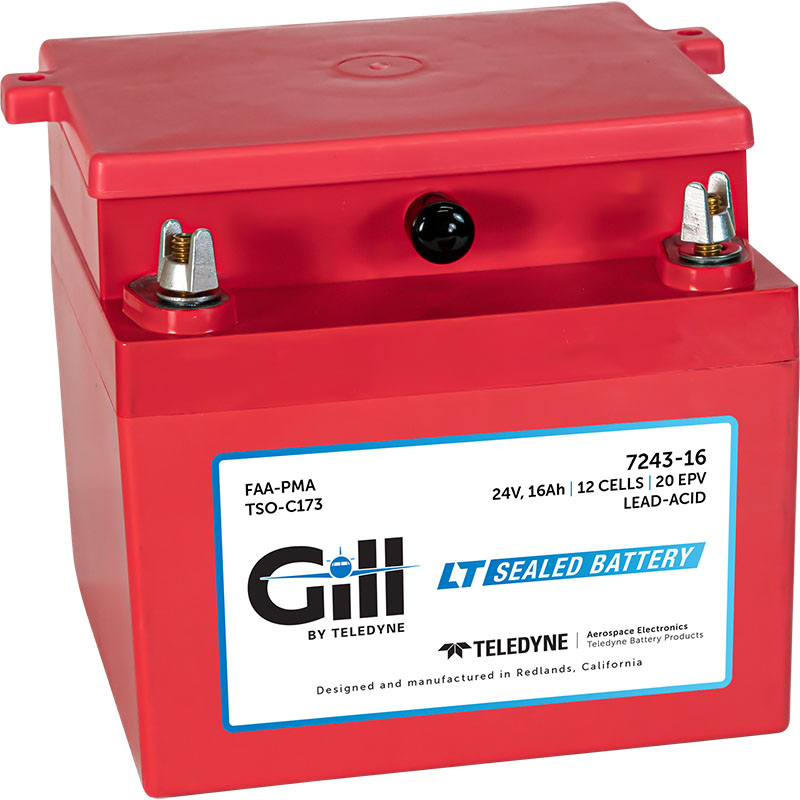

GILL® 7243-16 LT SEALED LEAD ACID BATTERY

$664.00/Each
Quantity
Add to Wishlist
Part# 11-12210
MFR Model# 7243-16

Overview

  • The 7243-16 is a “sealed lead acid battery upgrade” to the popular Gill® G-243
  • Maintenance Free –Shipped Fully Charged and No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Start strong with the Gill® 7243-16 for your 24V Cessna, Cirrus, Piper, Mooney, Commander, Diamond, True Flight Holdings LLD and Maule piston-powered aircraft. See application chart link to locate your aircraft and review your battery options.

MODEL VOLTS AMP HOURS 30 MINUTE CAPCITY WEIGHT Lbs. BATTERY DIAGRAM
7243-16 24 16 25 29.9 Full Battery Specifications

Application Guide

Manufacturer Model PMA SUP. #
Cessna 152, A152, 172N, 172P, 172Q, 172R, 172RG, 172S, F172N, F172P, FR172K, R172K, 182S, 182T, R182, T182, T182T, TR182, A188B, P210N, T303 58
Cirrus SR20, SR22, SR22T, SR 22, SR 22T, SR 20 58
CPAC, Inc. 114B, 114TC 58
Diamond DA 40, DA 42 58
Maule M-4-180V, M5-180C, M-5-235C, M-6-180, M-6-235, M-7-235, M-7-235A, M-7-235B, M-7-235C, M-7-260, M-7-260C, M-8-235, MT-7-235, MT-7-260, MX-7-160, MX-7-160C, MX-7-180, MX-7-180A, MX-7-180AC, MX-7-180B, MX-7-180C, MX-7-235, MXT-7-160, MXT-7-180, MXT-7-180A 58
Mooney M20J, M20K, M20L, M20M, M20R, M20S, M20TN 58
Piper PA-46R-350T 65
Piper PA-28-161, PA-28-181, PA-32-301FT, PA-32R-301(SP), PA-32R-301 (HP), PA-32R-30 1T, PA-32-310XTC, PA-46-350P 58
True Flight Holdings AA-5, AA-5A, AA-5B, AG-5B 58

Specifications

  • Type: Sealed
  • Volts : 24
  • Weight 30 lbs
  • Electrolyte: Not Needed
  • Capacity: 1 Hr (C1) 16
  • lpp: 30 Min (2C) 25
  • lpr:
  • Description: Aircraft Battery
  • TSO Authorized: Yes
  • FAA-PMA: Yes

Benefits

  • Higher Capacity (16Ah). 23% greater than the G243S (13Ah), and 60% greater than the G-243 (10Ah)
  • Faster starts
  • Charge Recovery time (after engine has started) is twice as fast.
  • Best Shelf life in Lead-Acid Chemistry.
  • 2 year Warranty
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Order specified a battery date code condition and they did not follow instructions. Battery had small area of damage. They did price match and ship quickly.

John
August 24, 2019

Fast ship to Europe abt USD 150 ðź‘Ťðź‘Ś

Odd N
June 13, 2019

Q&A

Q: Is the Gill 7243Ah Sealed VRLA battery a gel type battery?

No, this is a valve regulated lead acid (VRLA) battery. It is NOT gel type.

Q: Is the Gill LT 7243-16Ah a 24 volt battery?

Yes, this is a 24V battery.

Q: What is the weight of this Gill LT 7243-16Ah battery?

Per Gill: 30 lbs.
