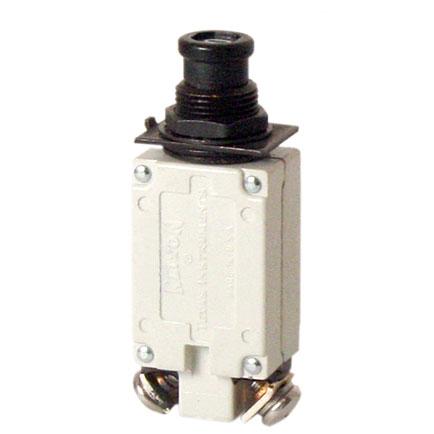

7274-2-.5 Circuit Breakers

1 Review 0 Answered Questions
$139.80/Each
Quantity
Add to Wishlist
Part# 11-16406
MFR Model# 7274-2-1/2

Overview

7274 series are small, lightweight, low amperage devices that are specifically designed to protect aircraft/aerospace cable and components in airborne vehicles and equipment.

Trip–Free
The 7274 features a trip–free, indicating reset button and is available in standard ratings from ˝ to 20 amps.

Wiping Action
A "wiping action" contact design assures low voltage drop, faster trip time and high reliability in low voltage applications. They are available in standard ratings from ˝ to 20 amps.

Water Resistant Panel
A water resistant panel seal designed to fit over the push button actuator is available for applications that require this type of protection.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Uses minimum space
  • Light weight
  • Trip–free
  • MIL-C-5809 qualified
  • Current rating: 1/2 amp
  • Low amp
  • High vibration resistance
  • Typical use: Military airborne vehicle and equipment protection

Specifications

Actuator Function: Trip-reset
Actuator Position Designation: At pole one
Body Length: 0.780 inches
Body Style: Single pole type
Body Width: 0.580 inches
Bushing Length: 0.359 inches
Case Material: Metal
Center To Center Distance Between Terminals Parallel To Length: 0.593 inches
Circuit Protection Type: Overcurrent single location
Fragility Factor: Moderately rugged
Frequency In Hertz: 400.0 single location
Inclosure Protection Type For Which Designed: Explosion resistant and moisture resistant
Internal Trip Release Configuration: Series trip single location
Main Contact Tripping Mechanism Type: Trip free
Manual Actuator Type And Quantity: 1 push-pull
Maximum Continuous Load Current Rating Per Pole: 5.0 amperes ac single location and 5.0 amperes dc single location
Mounting Facility Type And Quantity: 1 threaded bushing w/panel seal
Mounting Surface To Terminal End Distance: 1.420 inches
Thread Size: 0.438 inches
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Great product as always!!

Carlos S Verified Purchase

CIRCUIT BREAKER 7274-2.5
May 15, 2023

Q&A

Submit
