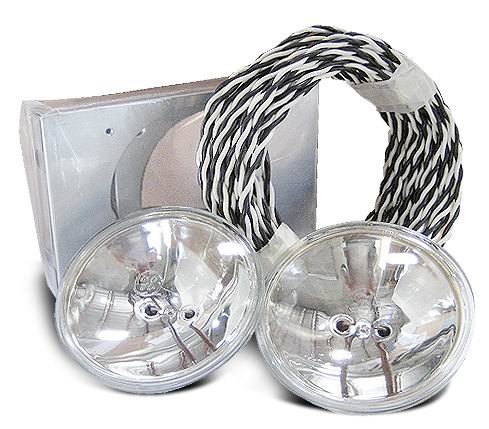

Kit consists of two GE #4509 12V, 100 watt sealed beam lamps, brackets for installation, switch, switch plate, 60 ft. of 2-conductor hookup wire and instructions. Size: 4-1/2"H x 5-1/4"W x 2-1/4"D with bulbs installed.
aircraft landing lights 240 watts 13 volts.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, we have posted the install instructions as a PDF file in the "Documents" tab of the web page.
This kit is for experimental / homebuilt aircraft only. No FAA approval. The builder will need to fabricate the area in the wing to install this kit, and would need to determine if it can be used for their application, fabric or metal.
Per our tech: the best info we have is this kit comes with qty 2 GE-4509 bulbs, and each bulb is rated to draw 7.69 amps.
Black and white wrapped 18 gauge wire.
It is for a single bulb in each wing.
This comes with par 36 lights, approx 4-1/2 inch in diam.
