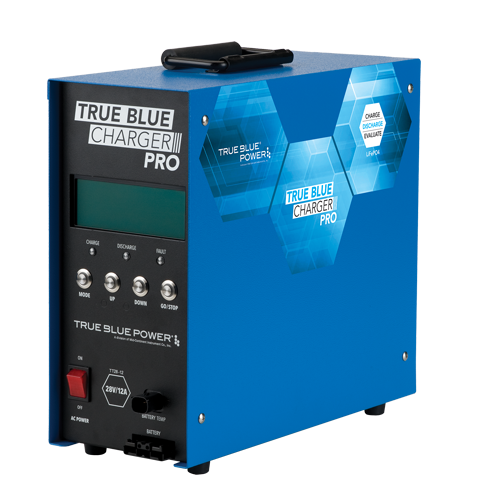

True Blue Power Charger Pro Tt28-12

$4099.00/Each
Quantity
Add to Wishlist
Part# 10-07286
MFR Model# ACM-1260-101

Overview

Charge, discharge and evaluate True Blue Power lithium-ion aircraft batteries with the intelligent and easy-to-use TT28-12 True Blue Charger PRO.

The ONLY battery charger to automatically discharge lithium-ion aircraft batteries to 30% state-of-charge, as required for air shipment.

The True Blue Charger PRO is pre-loaded with all charge and discharge parameters for True Blue Power lithium-ion batteries, allowing maintenance personnel to safely and efficiently top charge batteries and perform scheduled capacity checks.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Specifically engineered to charge, discharge and test True Blue Power lithium-ion aircraft batteries:
  • TB17 (17 amp-hour) - TB40 (40 amp-hour)
  • TB20 (20 amp-hour) - TB44 (46 amp-hour)
  • TB30 (30 amp-hour) - TB60 (60 amp-hour)
  • Variable Power: 12.5 amps charge (nominal); 60 amps discharge (maximum)
  • Alphanumeric LCD display provides battery mode, current, voltage, temperature and timer
  • Charge, Discharge and Fault LED indicators
  • One-year limited warranty
  • Specifications

    Model Number TT28-12
    Part Number ACM-1260-101
    Input Voltage 90 – 132 VAC or 180 – 264 VAC (switch selected)
    47 – 63 Hz
    Input Power 8.4A at 115 VAC
    4.35A at 23 VAC
    15A Circuit Breaker
    Battery Charge Voltage Lithium-ion; 28.8V (maximum)
    Operating Temperature 0°C to +55°C (32°F to 131°F)
    Storage Temperature -40°C to +80°C (-40°F to +176°F)
    Display Measurement To 0.1 volts, 0.1 amps
    Display Accuracy ±0.2 volts, ±0.2 amps
    Weight 29.5 lbs (13.4 kg)
    Dimensions 6.5” W x 14.5” H x 15” D
    Battery Connectors Compatible with MS-3509, 5/16” ring terminals, alligator clamps and temperature cables
    Protection and Monitoring Overcharge, over-temperature and time out for failed batteries, auto shut off after top charge is complete and audible alerts for low voltage and reverse polarity

    Documents

    Reviews

    Q&A

    Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: Can this charge and test lead acid batteries?

    No this is intended for Lithium ion batteries only.
