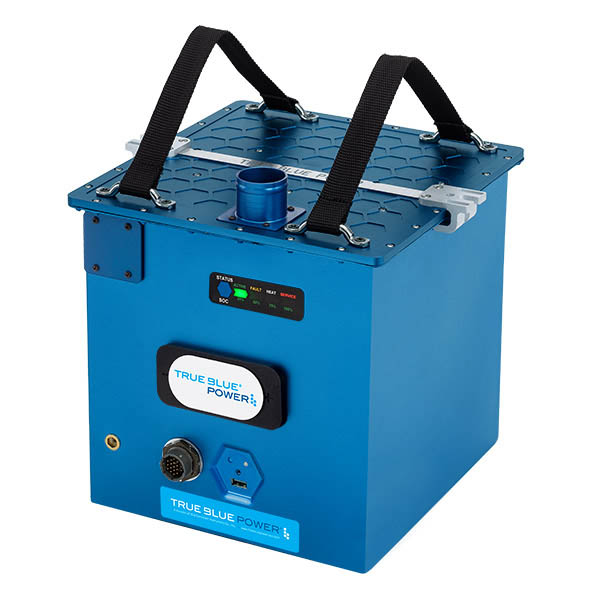

True Blue Power Gen5 TB50 Lithium-ion Aircraft Battery

0 Reviews 0 Answered Questions
$22810.00/Each
Quantity
Add to Wishlist
Part# 10-07767
MFR Model# 6430050-1

Overview

The new Gen5 TB50 Lithium-ion Aircraft Battery is a same-size replacement for the industry standard 44 amp-hour battery, while offering more power, less weight and zero maintenance. The TSO-certified TB50 from True Blue Power lasts 8 years and features an automatic, built-in heater. This allows your aircraft to outperform all others in extreme temperatures, from -40°C to +70°C.

Start Lighter
True Blue Power batteries are the lightest and most compact, saving you up to 85 pounds per battery. Our efficient design gives you more power per pound than any other aircraft battery. Less weight means more passengers, more cargo, more fuel, and more design flexibility.

Start Faster
True Blue Power batteries give you cooler and faster engine starts, capable of 7 starts in 7 minutes. Turboprop engines, like the Pratt & Whitney PT6A, start in half the time and, typically, 100° cooler. Our sophisticated design allows your battery to fully recharge within 30 minutes and constant voltage helps eliminate hot starts. An automatic, built-in heater ensures your aircraft outperforms all others in extreme temperatures, from -40°C to +70°C.

Start Smarter
True Blue Power batteries provide constant monitoring, protection, and capacity data. Our proprietary Battery Management System is exclusive to True Blue Power and has been validated by the most demanding aircraft manufacturers. Even smarter, you’ll save time and money with the longest-lasting, maintenance-free aircraft batteries on the market. Gen5 batteries require no capacity checks and last 8 years. That’s up to 4x longer than lead acid and NiCad.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Same-size replacement for standard 44 amp-hour batteries with more power, less weight, and no maintenance.
  • 50 amp-hour nominal at 23°C/73°F
  • Weighs 43.9 lbs. — up to 50% less than lead-acid and NiCad solutions
  • Advanced NanoPhosphate® lithium-ion cell chemistry
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
  • More than 1 amp-hour per pound
  • Automatic internal heater
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • ARINC 429, Analog and Discrete communication
  • Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
  • On-condition maintenance
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO certified
  • Two-year limited warranty

Specifications

  • Capacity: 50 amp-hour nominal (at 23°C/73°F)
  • Charge Voltage: 28 VDC nominal
  • Output Voltage: 26.4 VDC nominal
  • Output Current: 460A continuous (1500A max)
  • Technology: Advanced NanoPhosphate® lithium-ion cell chemistry
  • Energy Density: 66.3 Wh/kg (83.1 Wh/liter)
  • Charge Current Limiting: Programmable up to 8C or unlimited
  • Operating Temperature: -40°C to +70°C (-40°F to +158°F)
  • Weight: 43.9 lbs. (19.9 kg)
  • Dimensions: 10.0”L x 9.6”W x 10.1”H
  • Configuration: 21P8S; 7 parallel x 8 in series x 3
  • Battery Life Expectancy: 8 years (average)
  • Maintenance: On-condition
  • Case: Anodized aluminum, blue
  • Certification:
  • FAA TSO-C179b (Class A-4B)
  • RTCA DO-311A
  • RTCA DO-160G
  • RTCA DO-178C DAL A
  • UNDOT/IATA
