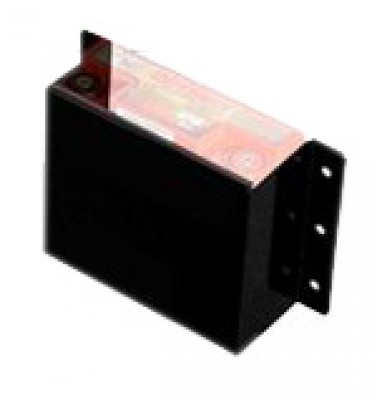

This hold down bracket for the Odyssey PC 680 battery can be easily mounted in any orientation. Color: Black
Note: this is not made of steel.
This battery bracket is so poorly made it is unusable on aircraft. It is not even close to square & 2 dimensions are nearly a tenth inch short, as the flat sheet was improperly bent / formed. A Spruce customer service person got with the manufacturer on this and they mentioned, The hold downs have been made the same way for almost 2 decades. Being a soft metal, aluminum can fluctuate quite a bit and they will never look to be perfectly straight. If you put a battery in the bracket and mount it down, it is all square and flush and fits the battery perfectly. If they were to return the bracket, they would get another that looks exactly the same. I agree with the last sentence so, Ill be returning it.
My bracket was bent/twisted a bit, so both mounting ears didnt sit flush. This added difficulty to aligning everything for installation. Also, part the curved lip at the top that holds the battery down protruded too far into the battery, pushing it back, and needed to be shaved down. Not very good quality control on my example. I should have exchanged it, but I wanted to get my install done. Other than those issues, the bracket was fine. Inspect yours before installing. Most are probably fine. Also, Id love to know who actually makes it and have a better part # to use, rather than BLACK. I used the Spruce part # for my 337. Is it made by EnerSys? As an aside, you can get stainless steel versions elsewhere, but Im guessing that the textured powder coating on this black version may actually disperse heat better (more surface area). I believe its made from aluminum/alloy, but not sure of the grade. Install tip: The bracket needs to tilt forward to remove the battery, so have the threaded end of the bolts on the outside with at least 1/4 extra thread past the nuts. Back off the nuts, tilt bracket forward, and slide battery out.
Great for odyssey batteries clean and secure installation easier to anchor than most upright boxes. I have found it also fits the midsize Powersonic battery as well.
Highly recommended when used with correct battery size .
Solid, well made and fits perfectly
This is a very good hold down.
The Hold Down Bracket For Odyssey 680 Amp Battery weighs 1.5 lbs.
Per the manufacturer, The alloy is aluminum and the thickness of the bracket is 0.05 in.
Yes, this will also work with the SBS J-16 battery as the batteries are dimensionally the same exact size.
3" x 6-1/4" x 9-3/4"
Yes, this bracket will hold down the battery directly.
This will have 0.3" ID mounting holes.
