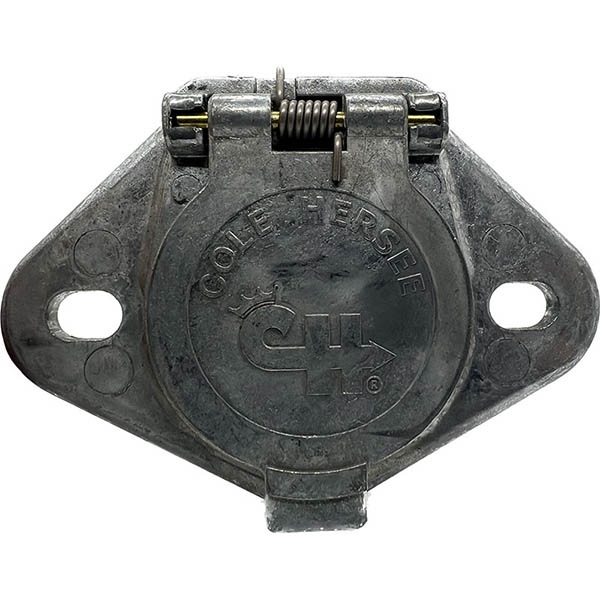

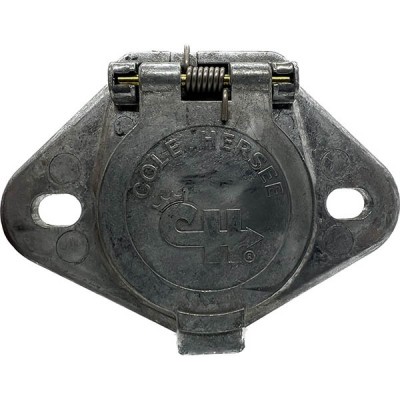

11041 PIPER TYPE SOCKET

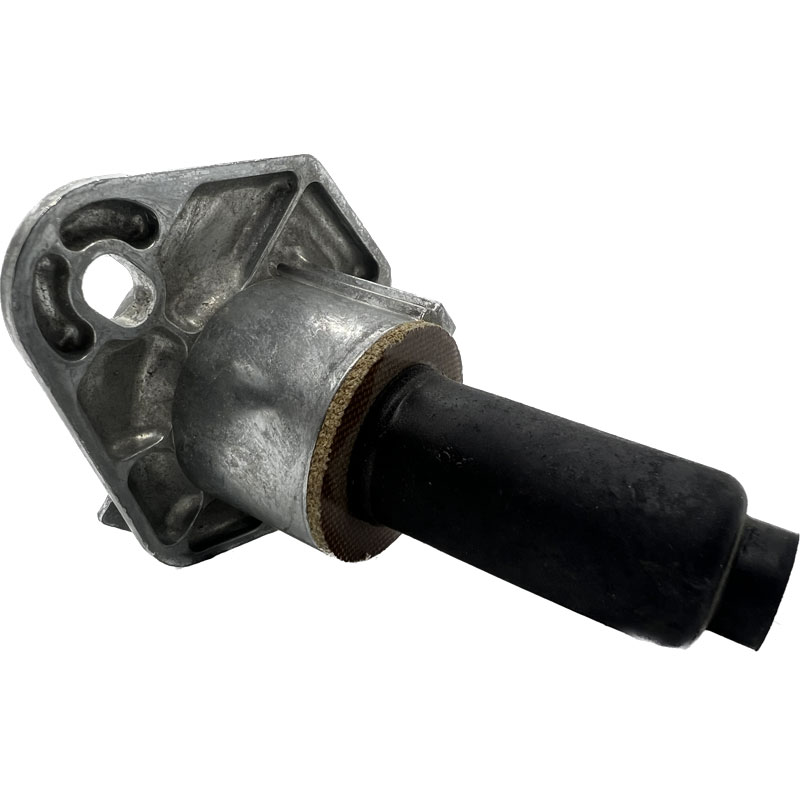

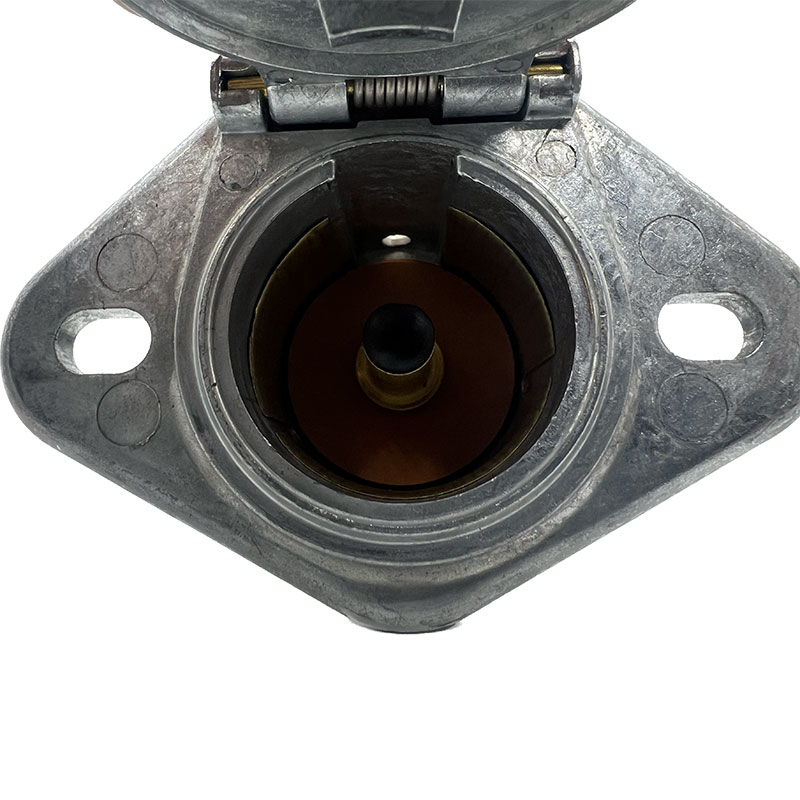

Self-grounding socket. Single pole. Diecast housing, spring-loaded door. Solid brass contact, 3/8” (9.5mm) diameter, with insulated tip to prevent short circuits. Rubber boot protects terminals and connections.
Accepts up to 0AWG cable.
Fits 2” (50.8mm) diameter hole. Flange holes 21/64” (8.6mm) diameter, 2 15/16” (74.6mm) on centers. Mates with 11042 plug.
This has a receptacle into which we soldered a one gauge shielded wire and then mounted to the side of the aircraft. The dimensions said that it was a 2 inch hole, but a two inch hole saw created too large of a whole. Ended up using a 1 and 3/4 in hole saw to get the correct sizing. Tested it on a doubler before cutting on the actual airplane. Looks nice and installation was straightforward once we solve the problem of the hole saw.
Well made. Fast delivery.
I own one. It is a good cheap and useful thing to have on airplanes even small ones such as RVs. Surface finish could be improve for a 5 star rating
No, this part is non-certified.
We have added the installation instructions PDF to the "Documents" tab of this web page. Please review them there.
Yes that is correct.
No, the Cessna 172 has the 3 pin style port. See Part# 11-03158.
