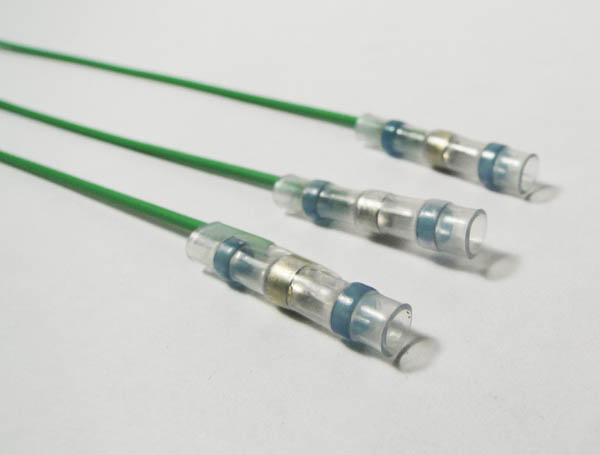

Single Conductor 1/4 Inch Solder Sleeve With Pigtail

$1.25/Piece
Quantity
Add to Wishlist
Part# 11-14743
MFR Model# CWT-7-W122-5

Overview

Soldersleeve Shield Terminators. SolderSleeve shield grounding terminators provide an environmentally sealed, insulated, and encapsulated solder connection for a variety of applications.

Product Type: Shield Terminator
Operating Temperature (Max) (C): 125
Expanded Inside Diameter (Min): 6.8 mm [.27 in]
Pre-Installed Lead : Yes
Resistance Properties: Splash Protection

Features

Product Type Features
Product Type
Temperature Indicator
Shield Terminator
No
Configuration Features
Pre-Installed Lead 
Pre-Installed Lead Type 
Yes
XL Polyethylene
Body Features
Shield Outside Diameter (Min)
Lead Stranding 
Lead Color
Lead Plating
3.7 mm [.145 in]
Stranded
Green
Tin
Dimensions
Expanded Inside Diameter (Min)
Overall Length
Pre-Installed Lead Wire Size (mm)
Jacket Outside Diameter
6.8 mm [ .27 in ]
32.5 mm [1.28 in]
.38
7 mm [.276 in]
Usage Conditions
Operating Temperature (Max) (C)
Resistance Properties 
Wire Temperature (Max) (C)
125
Splash Protection
85
Industry Standards
MIL/NAS Specification (MIL-S-83519, NAS-1747) 
Government Qualified 
No
No
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Very good quality product

Charles S Verified Purchase

SINGLE CONDUCTOR 1/4" SOLDER SLEEVE WITH PIGTAIL

March 29, 2022

They work great but they are bigger than 1/4 ID close to 3/8

Sylvain G
July 24, 2017

These are good for what they are, but are too big to neatly terminate shields on 2 and 3 conductor 24 gauge wire. The Sumitomo .250 solder sleeves that Spruce also sells are smaller than these 1/4 inch sleeves and work a lot better for that application.

Brian
November 29, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the length of the lead?

6 inches.

Q: The picture shows three pieces. The quantity suggests one. How many come with a quantity of one?

These are priced and sold individually, so quantity one will be one piece shown.

Q: Is this the correct tube for 22 ga 2-conductor cable?

Yes, this will work for 22 AWG wire.

Q: Will this work with 18 GA 1 conductor shielded wire?

Yes, 18 gauge wire will work with this.
