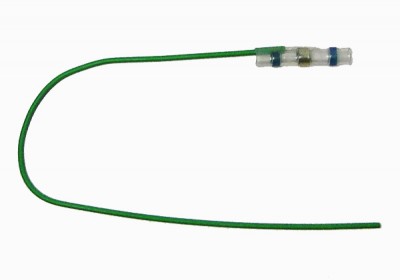

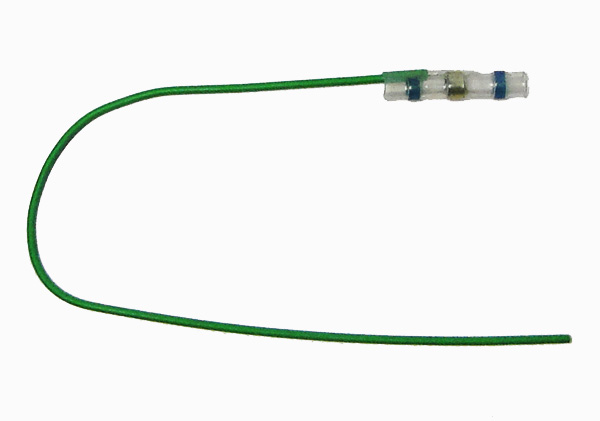

SINGLE CONDUCTOR 1/8 INCH SOLDERING SLEEVE WITH PIGTAIL

$1.18/Piece
Quantity
Add to Wishlist
Part# 11-12363
MFR Model# CWT-3-W122-5

Overview

Perfect for single conductor shielded cables used as daisy chains or audio / data lines and great for terminating "P Leads".

Note: Ring terminals not included.
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Saves DIY time for shielding wires.

Dan
April 9, 2020

Howard G
March 2, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the length of the pig tail?

6 inches

Q: What is the wire size of the pig tail?

22 awg.

Q: What OD of shielded cable fits inside this splice?

According to the manufacturer this is for single conductor 22 awg wire. For 2 conductor and 3 conductor we recommend the 1/4 inch part # 11-14743

Q: Would this accommodate 24awg shielded wire?

Yes, this will work for that gauge wire.
