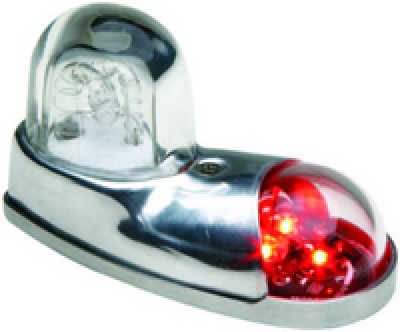

WHELEN MODEL 71110 SERIES ANTI-COLLISION LED POSITION LIGHT ASSEMBLY
Select Color:
GreenRedSelect Voltage:
14 Volt28 VoltOverview

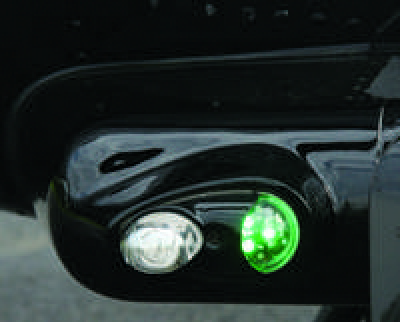

| 71110 series is a wing tip mounted strobe anti-collision/position light assembly utilizing LED's for the forward position lights. The LED's provide a significant reduction in current draw over conventional position light bulbs. The strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (exact footprint) for the Whelen Model A650PG/PR series without replacing the current strobe power supply. Navigation light portion is wired with flying leads. |
Reference Chart
(FAA TSO-C96a / TSO-C30c Type II) | ||
(FAA TSO-C96a / TSO-C30c Type I) | ||
(FAA TSO-C96a / TSO-C30c Type II) | ||
(FAA TSO-C96a / TSO-C30c Type I) |
Specifications
- LED Colors: Aviation Red, Aviation Green
- LED Navigation Light Power Consumption: 0.25 amps @ 14 VDC or 28 VDC
- Weight: 0.45 lbs. (204gm) 14 VDC, 0.50 lbs. (227gm) 28 VDC
- Exposed Height: 2.70” (69mm)
- Lens: Clear RFI coated glass: strobe, Clear Polycarbonate: Navigation Lights
Q&A
Q: I plan to buy 2 x 71110 and 1 x WHELEN MICROBURST I TAILLIGHT ASSEMBLY strobes (Part # 11-08472). Which power supply should I choose for these 3 strobes?
For the 71110 series wingtip lights you can use the HDACF power supply. 11-16218 is the part number for the HDACF. The Microburst 1 does not require a power supply and can be run off of 14 volts DC.
Q: I plan to buy 2 x 71110 and 1 x WHELEN MICROBURST I TAILLIGHT ASSEMBLY strobes (Part # 11-08472). Which power supply should I choose for these 3 strobes?
For the 71110 series wingtip lights you can use the HDACF power supply. 11-16218 is the part number for the HDACF. The Microburst 1 does not require a power supply and can be run off of 14 volts DC.
Q: If I replace my A650-PG with the Whelen Model 71110 series anti-collision LED position lights, do I need to replace the strobe power supply?
The Whelen Model 71110 series anti-collision LED position lights are a direct replacement (exact footprint) for the Whelen Model A650PG/PR series and replacing the current strobe power supply is not necessary.
Q: What is included with the Whelen Model 71110 series LED assembly? Everything in the picture including strobe bulb and both Lenses?
Yes, just select the color of the nav light, and voltage. It is sold as an assembly.
