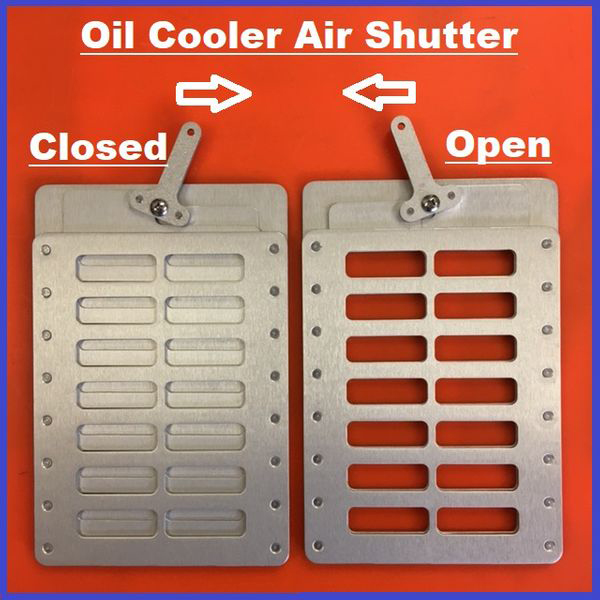

ANTI-SPLAT OIL COOLER AIR SHUTTER

$115.75/Each
Quantity
Add to Wishlist
Part# 05-21817

Overview

This product will add full control of air entering the oil cooler, thus giving the pilot some degree of control over the oil temperature. This basic product was offered for several years by another manufacturer, who ceased production. At this point we tooled up, made a few improvements to the rigidity, air flow, materials, and ease of operation. No restriction, when fully open these will flow 35% more air than the oil cooler will pass. The weight is only 5.5 oz. (a small price to pay for full control). The dimensions are 3.5 X 5.5 (against cooler opening), 4.5 X 6.5 (mounting flange), 7.75 to top of control arm. The thickness is .187. This can put to rest, fears of flying with your oil temperatures too low for efficient engine operation in cold climates, and greatly cut warm-up time for take-offs in any climate.

Reviews

Well made with smooth operation. Could come with cable and hardware but it is at a basic price. Shutter gave me tight control of the oil temperature without mods for an oil thermostat. Very happy with it!

James C
October 27, 2018

Works well. Brought my oil temps up about 40 degrees. Relatively easy to install. Easy to operate in flight. My only complaint is that there is no guidance as to Which cable/B-nut to order. Obviously there are any number of control handles/cables to use (ie: carb heat) but no guidance as to which B-nut to use

Brad C
February 11, 2019

This is a great product.......however it is incomplete as sold by Aircraft Spruce. To install it a way to attach a Bowden cable needs to be included. None of the hardware sold by Spruce will work, so I had to order from Anti-Splat the Bowden Cable connector made specifically for this application. It should be included with the shutter or at least stocked by Spruce and listed along with the shutter on the same page and recommended for purchase with the shutter.

C&b A
February 22, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What type of material is this Anti-Splat Oil Cooler Air Shutter? (metal , Plastic, alum.)

Aluminum.

Q: Is it compatible with Rotax branded Oil Coolers?

Yes, this goes on the opening for the oil cooler duct, so the brand of oil cooler does not have an impact.

Q: Is it possible to mount the shutter on the back of the oil cooler with good results? RTV perhaps to seal it of well?

Yes! You can mount it to the backside of your cooler with the basic same effectiveness and control. Many people do this and are very happy with their installation, and it is an easier job in some cases.

Q: How much travel is required to fully actuate the shutter lever?

As is the travel would be .875 but this can be altered by drilling another pivot hole in the control arm at the location that's better fits your application.

Q: what is the drilled holes size for the armature to match cable termination assemble?

The manufacturer has a bowden cable fitting that they recommend using. We can special order it for you. Please contact our sales department for a special order quote and lead time.

Q: Is this Anti-Splat Oil Cooler Air Shutter FAA approved?

No it is not. It is intended for experimental aircraft only.

Q: does it fit with the rotax 100hp oil cooler?

Yes, this goes on the opening for the oil cooler duct, so the brand of oil cooler does not have an impact.
