Christen 802 Oil Drain Valve

$501.00/Each
Quantity
Add to Wishlist
Part# 08-06745
MFR Model# 802

Overview

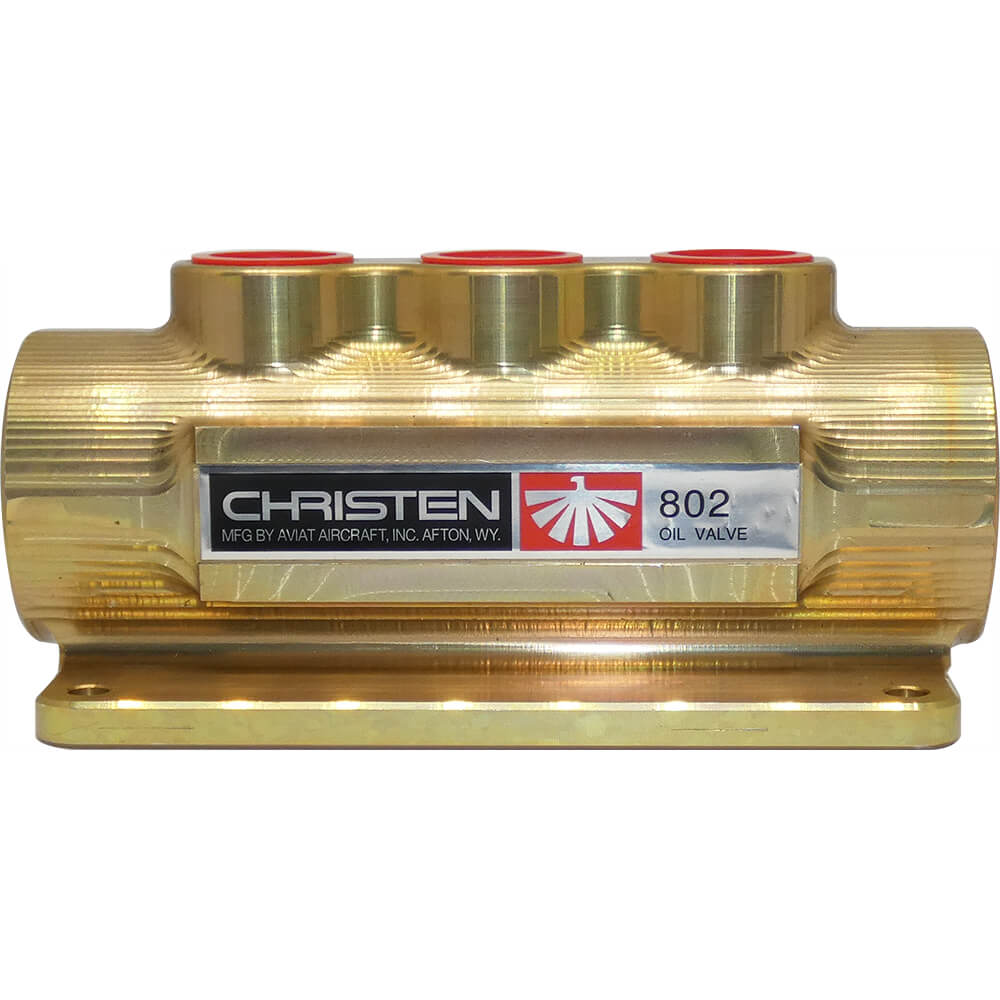

Note: Unit now comes in a gold cast finish, not in the epoxy white shown in the picture

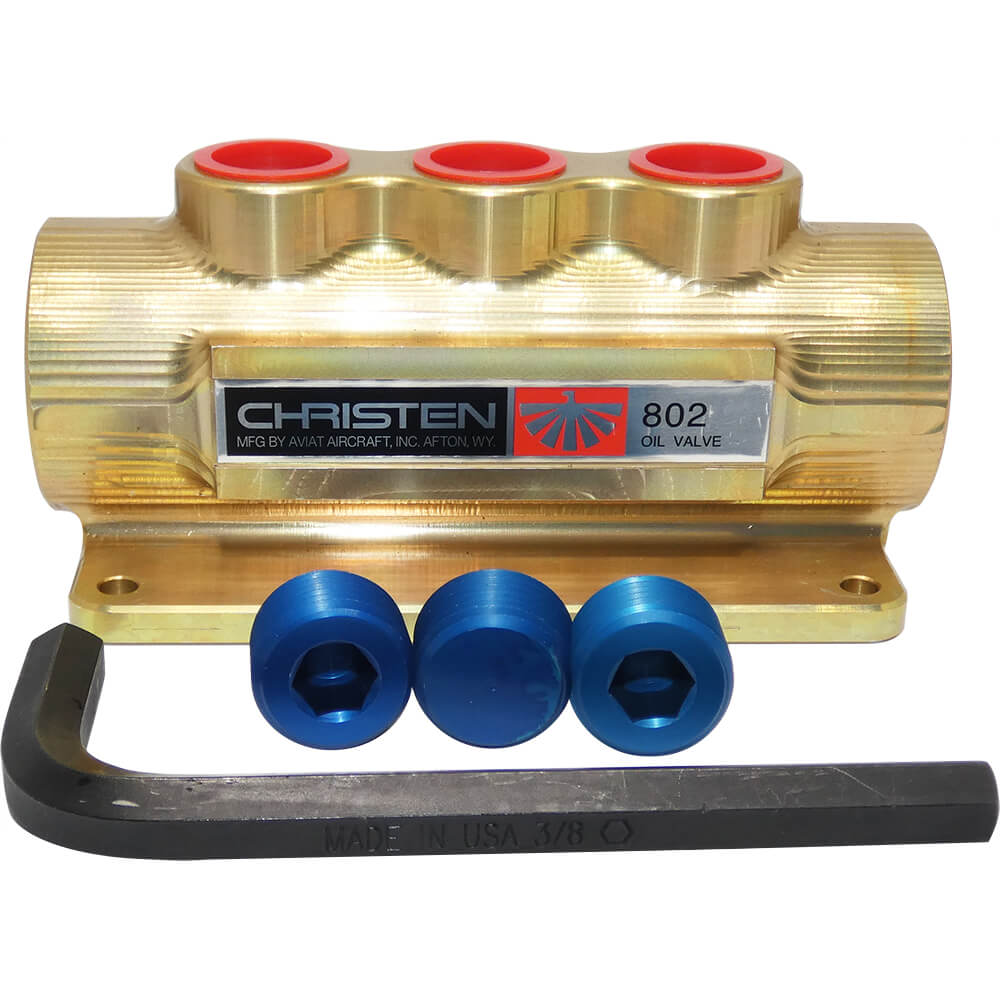

Christen 802 oil valve is a multiple port gravity operated ball valve. Cast aluminum w/textured white epoxy enamel finish & all internal steel parts are cadmium plated. Normally installed on firewall or engine mount. Designed for fittings to be installed at side, front or both. Req. 3 AN816-10D nipples for hose connection. Wt.1.75 lbs. installed.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you tell me the reference for the O-RING included in this part?

There is an o-ring in the body of the assembled unit. The Aviat part number is 50004-027.
