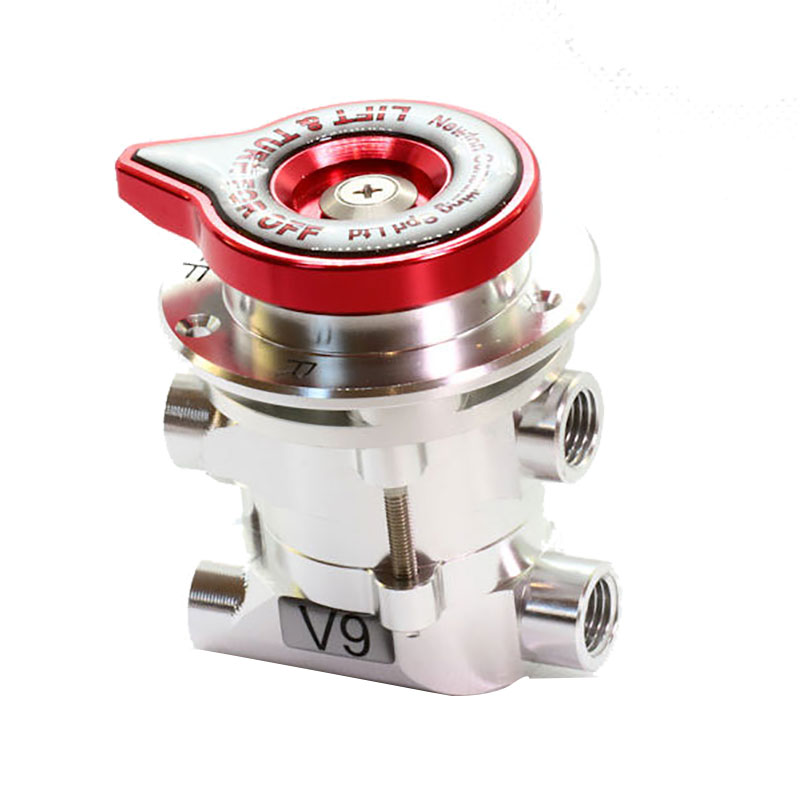

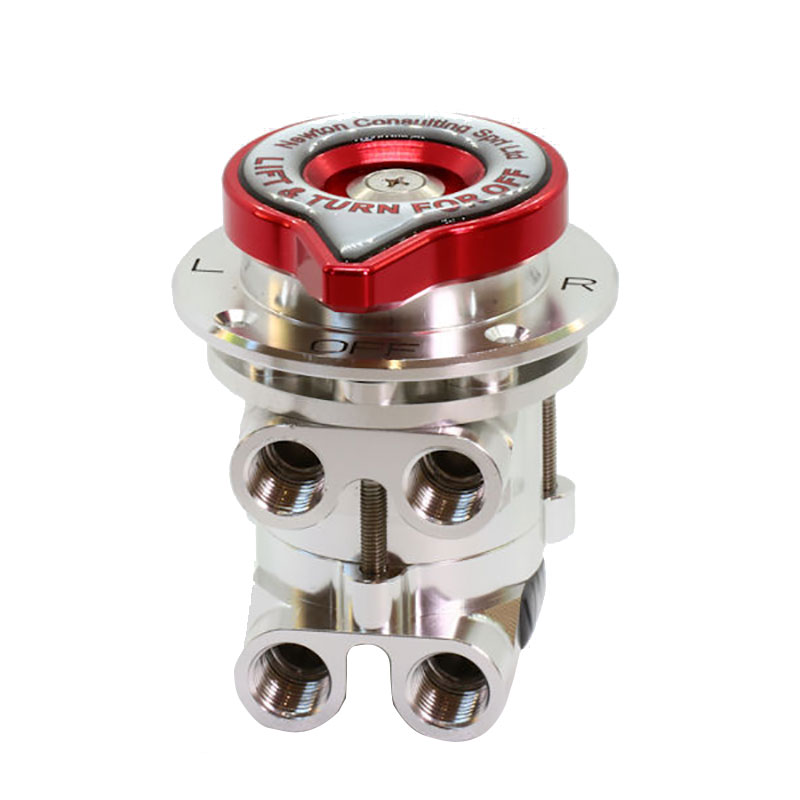

Newton V9-4P Four Way Duplex Valve

Add to Wishlist
Part# 05-21697
MFR Model# V9-4


SPRL V9-4-P duplex valve with ceramic disc valves for feed and return.

It is tapped 1/4″nps feed and return and will take standard npt fittings and our -6 banjos.

V9-4-P can carry the small selector plate 54mm in diameter or the standard plate @70mm interchangeable with other valves and other types.

V9-4-P is perfect for any low pressure return system.

The SPRL Valves, as designed, have a very nice 'feel' and are logical in use, however, there is a requirement in FAR 23 whereby the fuel valve must be turned from OFF to an ON selection simply by turning it, i.e. it should not have to be lifted up, pushed down etc, and it should also not be possible to turn it from an ON position to OFF without a dent.
California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.


Appears to be a very well built valve. Haven’t run it yet but it feels smooth and will work well with my EFII system.

Greg M Verified Purchase


September 17, 2021

The V9 and V10 are designed to fit in a narrow space with in line lines using AN-6 nipples part 05- 06926. For supply from the sides or underneath we suggest a banjo fitting, 05- 06474 as there is not room for two elbows.

Robin V
April 29, 2021

Two inlet holes are designed with too short distance. The shape of the fittings are very limited. This valve is not so practical as as the price.

Fumiaki K
April 2, 2020


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does it have Both option or only one tank at a time?

Yes. It does have a both option.

Q: What fittings does it come with?

No fittings are included with the valve, ports are tapped 1/4 nps and will accept 1/4 npt.
