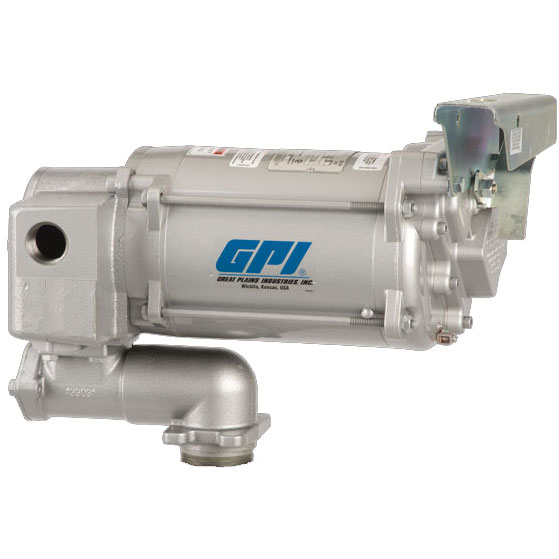

Gpi Refueling Pump M-3130-AV-Po

$1629.00/Each
Quantity
Add to Wishlist
Part# 08-07466
MFR Model# 504000-01

Overview

GPI REFUELING PUMP:
  • 115/230-Volt
  • 30 GPM / 114 LPM
  • Motor is U.L. Listed to U.S. and Canadian Standards
  • Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).

  • These pumps are only intended to be ground based or vehicle mounted. Do not use or mount in or on aircraft, may be used with aviation fuel.

    California Prop 65 Warning Symbol

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Specifications

    • Model: M-3130-AV-PO
    • Voltage & Type: 115 or 230-volt AC - Vane
    • Flowrate: 30 gpm, 114 lpm
    • Duty Cycle: 30 minutes on / 30 minutes off
    • Nozzle : None
    • Inlet/Outlet Size: 1 1/4 in. / 1 in.
    • Suction Pipe: None
    • Hose: None
    • Motor Protection: Internal temperature limiting device
    • Bypass Pressure: 20 psi 1.4 bar
    • Current Draw: 9.8 amps
    • Unique Feature: Unique strainer and poppet design allows for easy access and maintenance.
    • Use with: Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).
    • Approvals : Motor is U.L. Listed to U.S. and Canadian Standards.
    • Mfg Warranty: 2 Year
