NYLO SEAL FITTINGS

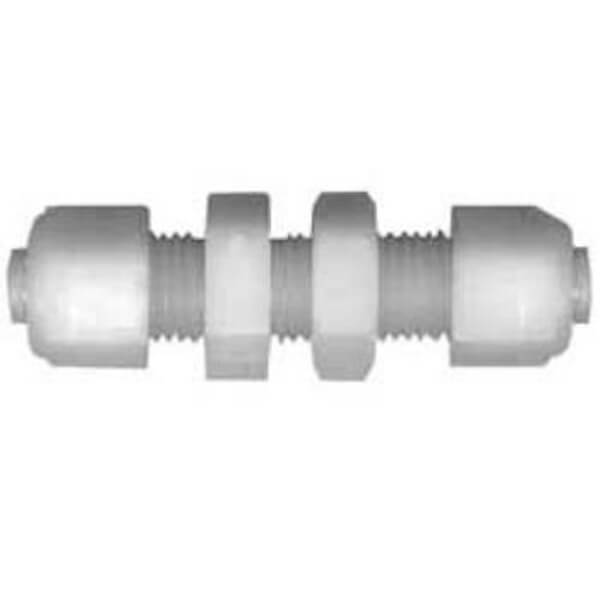

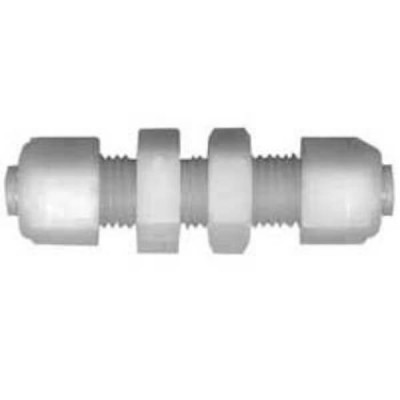

282-N BULKHEAD UNION

From $7.65 to $8.50
Part Number Price Buy
282-N04
$7.65
Quantity
282-N06
$8.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.

For Nylo-Seal tubing, see "Accessories" tab

Less 10% on 50 pieces per size, Less 20% on 100 pieces per size

Specifications


PN OEM PN Tube
OD
Pipe
Thread
A B C D E F G
282-N04 282-N04 1/4 7/16-20 1-57/64 1-31/64 5/8 7/32 15/32 5/8 5/16
282-N06 282-N06 3/8 5/8-20 2-1/4 1-53/64 13/16 11/32 19/32 7/8 3/8
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Q&A

Q: Can 282-N06 Nylo-Seal bulkhead union be used with P/N 15-04818 clear blue fuel line? I'm looking for a fuel line fitting to go through my firewall. - Thanks

The 282N-06 Nylo-Seal fitting is designed to be used with rigid nylon tubing, not rubber hose. We do not have any info to say how well this would work on rubber.
