Dash No. | MS No. | Dia. (in.) |
Length (in.) |
Recommended Drill Size |
Part No. | Price | Buy |
---|---|---|---|---|---|---|---|
AN535-00-2 | MS21318-1 | .060 | 1/8 | #55 (0.52) | 04-01246 | $0.05 | |
AN535-00-3 | MS21318-2 | .060 | 3/16 | #55 (.052) | 04-01247 | $0.06 | |
AN535-00-4 | MS21318-3 | .060 | 1/4 | #55 (.052) | MS21318-00-4 | $0.78 | |
AN535-0-2 | MS21318-7 | .075 | 1/8 | #51 (.067) | 04-01248 | $0.06 | |
AN535-0-3 | MS21318-8 | 0.75 | 3/16 | #51 (.067) | 04-01249 | $0.06 | |
AN535-0-4 | MS21318-9 | .075 | 1/4 | #51 (.067) | MS21318-9 | $0.06 | |
AN535-2-2 | MS21318-13 | .100 | 1/8 | #44 (0.86) | 04-01250 | $0.06 | |
AN535-2-3 | MS21318-14 | .100 | 3/16 | #44 (0.86) | MS21318-2-3 | $0.06 | |
AN535-2-4 | MS21318-15 | .100 | 1/4 | #44 (0.86) | MS21318-2-4 | $0.06 | |
AN535-4-3 | MS21318-20 | .116 | 3/16 | #37 (.104) | 04-01251 | $0.07 | |
AN535-4-4 | MS21318-21 | .116 | 1/4 | #37 (.104) | MS21318-4-4 | $0.06 | |
AN535-4-5 | MS21318-22 | .116 | 5/16 | #37 (.104) | 04-01252 | $0.07 |

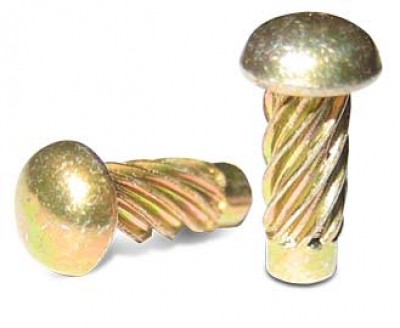

Hardened steel screws to make permanent fastenings to ferrous and non-ferrous castings, heavy gauge steel, plastics, etc. Cadmium plated. |
These are measured from below the head to the tip.
