AN45 Eye Bolts (5/16-24 Thread | 5/16 Shank)

From $12.85 to $59.65
Nominal
Length
Grip
Length
Part Number Drilled Undrilled
5/81/16
AN45-4
$59.65
Quantity
--
7/85/16
AN45-6
$33.50
Quantity
$12.85
Quantity
17/16
AN45-7
$18.80
Quantity
$19.50
Quantity
1-1/413/16
AN45-12
$23.50
Quantity
$18.95
Quantity
1-3815/16
AN45-13
$38.50
Quantity
$23.50
Quantity
1-1/21-1/16
AN45-14
$19.85
Quantity
$23.50
Quantity
1-5/81-3/16
AN45-15
$30.95
Quantity
$26.65
Quantity
21-9/16
AN45-20
$29.50
Quantity
$41.85
Quantity
2-1/22-1/16
AN45-24
$30.50
Quantity
--
2-7/82-7/16
AN45-27
$36.75
Quantity
$27.50
Quantity
32-9/16
AN45-30
$22.99
Quantity
--
Subtotal $0.00
Add to Wishlist

Overview

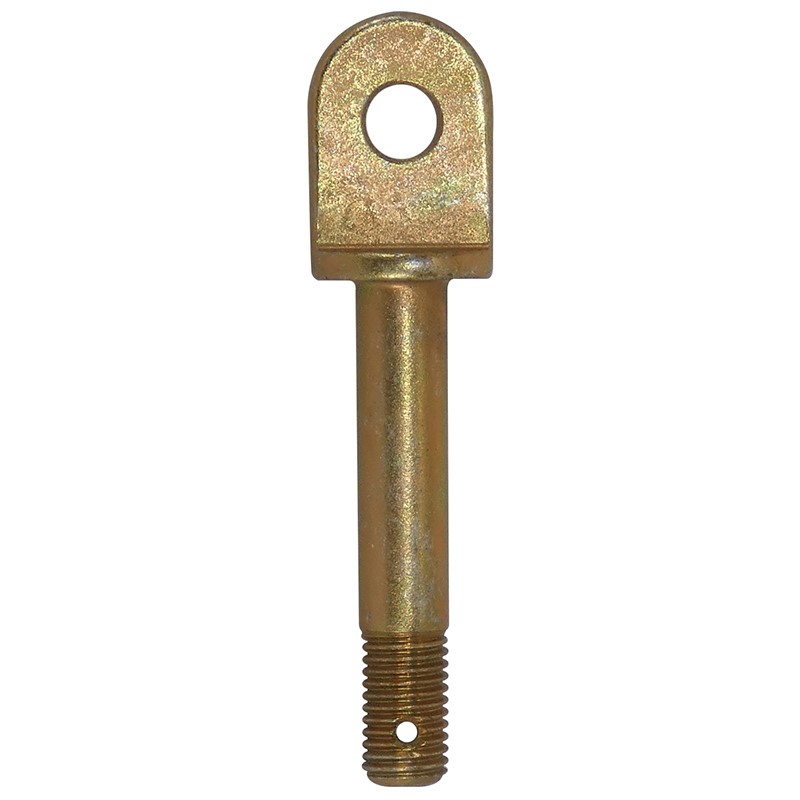

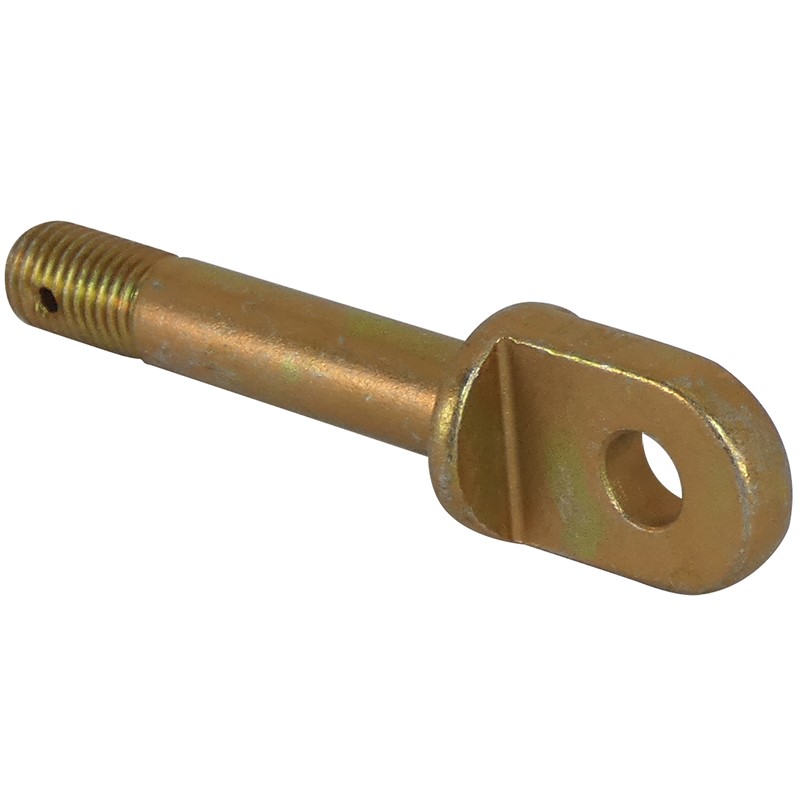

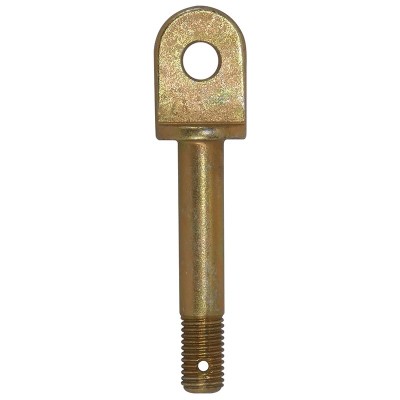

Eye bolts are special purpose bolts to be used where external tension loads are to be applied. The eye is designed for attachment of such devices as a turnbuckle fork, a clevis or a cable shackle. Manufactured and plated in same manner as AN3 - AN8 bolts . Minimum tensile strength 125, 000 PSI . Eye bolts will be furnished with either drilled or undrilled shank subject to stock on hand. Add letter "A" after dash number for undrilled shank.

Shank 5/16". Hole 5/16". Thread 5/16-24.

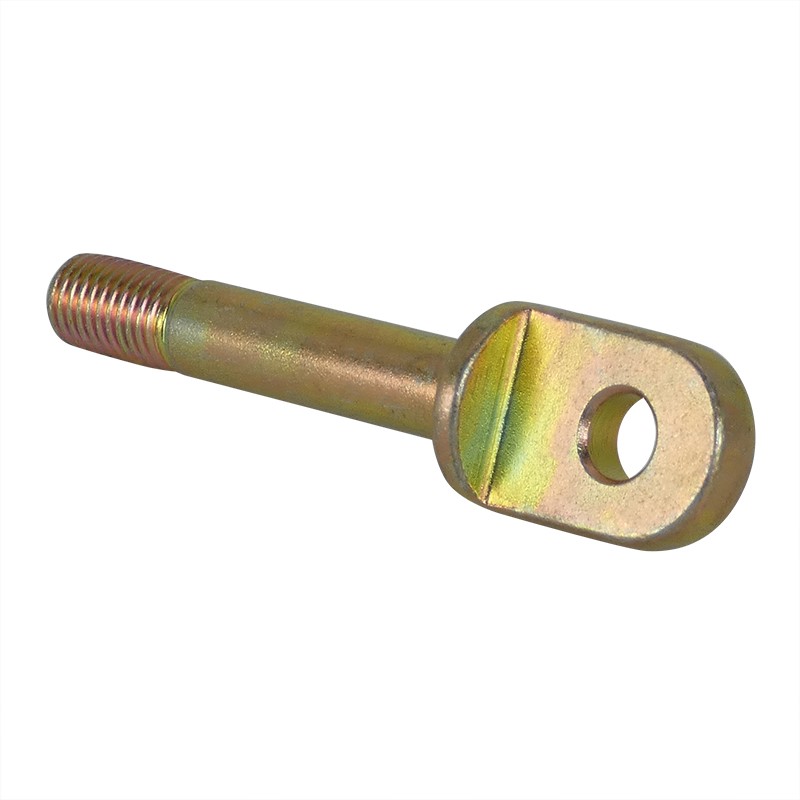

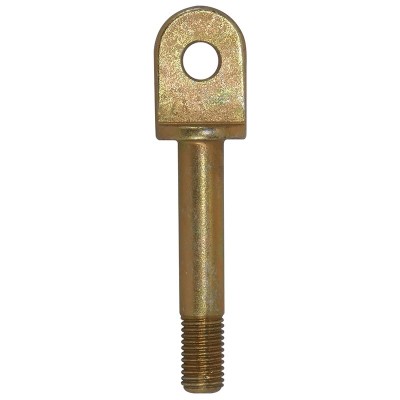

For "Undrilled" use "A" at end of part number.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Bob B Verified Purchase

EYE BOLT DRILLED AN45-4

October 18, 2022

Received one part in the lot of 39 pieces that was the wrong length.

Jim M
November 25, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How can I tell the diameter of the eyebolt from the part number? Is the grip the unthreaded part of the eyebolt?

The AN45 bolts are 5/16-24. Yes, the grip is the unthreaded portion of the bolt.

Q: Are these AN45 eye bolts listed on this page stainless steel?

No, these are cadmium plated.

Q: What is the thickness (width) of the eye?

11/16
