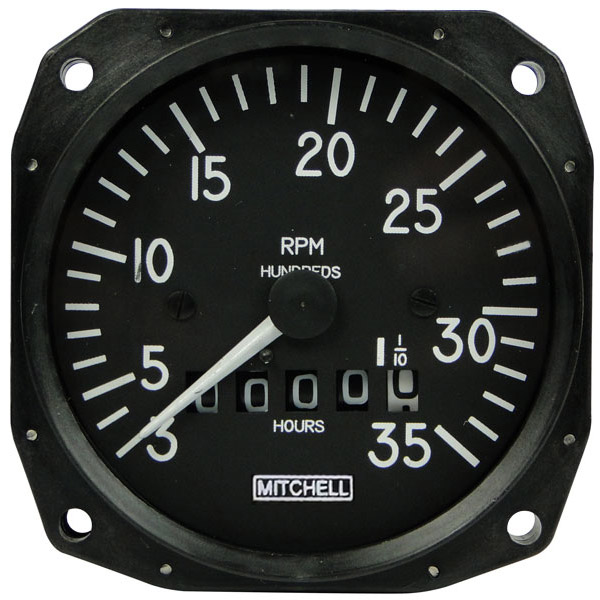

Mitchell Clockwise Mechanical Tachometers

From $347.00 to $380.00
Mitchell Model Direction of
Rotation
Avg. Cruise
RPM
Size Part Number Price Buy
D1-112-5023Clockwise23003-1/8"
10-24623
$365.00
Quantity
D1-112-5122Clockwise20503-1/8"
10-24622
$347.00
Quantity
D1-112-5025Clockwise25663-1/8"
10-24625
$365.00
Quantity
D1-112-5028Clockwise18003-1/8"
10-24628
$362.00
Quantity
D1-112-5034Clockwise30003-1/8"
10-24634
$365.00
Quantity
D1-112-5024Clockwise24003-1/8"
10-24644
$365.00
Quantity
D1-112-5225Clockwise25662-1/4"
98480-2
$379.00
Quantity
D1-112-5223Clockwise23002-1/4"
10-02046
$380.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

In 1985 AC discontinued production of the popular “RT” series of mechanical tachometers. Mitchell immediately entered the market to fill the void. These tachs feature exceptional accuracy and reliability. Mitchell tachs come with a factory-direct 2 year warranty. The range on all models is 500 to 3500 RPM. Accuracy is +/- 25 RPM from 1000 to 3000 RPM. Determine the correct part number from the chart below. All Mitchell tachs are FAA approved to TSO-C49b for certified aircraft.

2-1/4" tachs are direct replacements for the 3-1/8" tachs to save panel space.

10-02354 for custom range marks (specify ranges, 4-6 week lead time).
10-02479 to set hours (specify hours, 14 day lead time).

Direction of rotation is defined as when viewing the front of the tachometer.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reference Chart

IFR P/N MITCHELL P/N STEWART WARNER NO. AC TYPE DIR. OF ROTATION AVG. CRUISE RPM

Aero Commander: A9, A9A, A9B
Aeronca: 15AC Sedan
Alon: F1, F1A, A-2, A-4 & 415C. D, E, F, G (Including Ercoupe and Forney)
Grumman/American: AA-1, AA1A, AA-5
Beech: C35, D35, E35, F35
Bellanca/Champion: 7EC, 7FC, 7GC, 7HC,7GCB, 7K, 7ECA, 7GCAA, 7GCBC, 7KCAB, 8KCAB, 260, 14-19, Viking 300, Turbo Viking
Call: A2, A3, A4, A5, A9
Cessna: 120, 140, 170, 180, 182, 185 (with IO-470 eng.) 188, 336, 337
Culver: Cadet
Lake Aircraft: C-1, C-2, L-4, LA-4SC, LA5
Mooney: Mark 20, 20A, 20D, 21, 200, 201, 202, 220
Piper: PA12, PA16, PA18, PA20, PA22, PA23, PA24, PA25 PA28, PA30, PA32, PA39
Rockwell--112, 114
Taylorcraft: 19,15A, 20, 20AG, Zephyr
Temco: (Swift; GC-1, GA-1B)

55-35-7
D1-112-5023
P-551-AZ
RT-7
Clockwise
2300
Beech: 35, A3S, B35, 35R
55-35-8
D1-112-5122
P-551-AYZ
RT-8
Clockwise
2050
Aeronca--Champion, Chief (early models) Piper--PA15, PA18, (W/TCM eng)
55-35-9
D1-112-5030
P-551-AZH
RT-9
Counter- clockwise
2300
Aeronca--Champion, Chief (late models)Champion--7AC, 11AC, 7CCM Beech--All Musket
55-35-10
D1-112-5124
P-551-AZJ
RT-10
Counter- clockwise
2050
Bonanza Models-G35 thru V35, V35TC, 36, A36, 95, B95, B95A, D95A Cessna: 150, 152, 172, 177, 185 & 188 (with IO-520 eng), 206, 207, 210, 310, 320 Helio: H250, H391, H392, H395 Navion: E, F, G Stits: SA9A, SA9B
55-35-11
D1-112-5025
P-551-TA
RT-11
Clockwise
2566
Bellanca/Champion--7AC Stinson--105,108
55-35-12
D1-112-5032
P-551-AZK
RT-12
Counter- clockwise
2566
Aero Commander (Ayres Corp.) B1A, S2B, S2C, S2D, S2R Stearman--A75 (P & W eng.)
55-35-14
D1-112-5028
P-551-AZA
RT-14
Clockwise
1800
Cessna--175
55-35-15
D1-112-5034
P-551-AZB
RT-15
Clockwise
3000
Grumman--G164
55-35-16
D1-112-5029
P-551-AZL
RT-16
Counter- clockwise
1800
Maule--M5/6/MX7-180, M5/6/7/MX7-235
55-35-17
D1-112-5024
N/A
RT-17
Clockwise
2400

*The specific tachometer listed is best suited if the installation has this approximate cruise rpm. Direction of rotation must be compatible with the previous tachometer that was used.

Specifications

  • Instrument Size: 3-1/8” or 2-1/4"
  • Dial Range: 300 -3500 RPM
  • Weight: 13 Oz.
  • Accuracy: +/- 25 RPM, 1000 – 3000 RPM
  • Depth: 3-1/2”
  • Approval: TSO C49b
  • Warranty: 2 years Factory Direct
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Great so far!

Andrew N Verified Purchase

MITCHELL TACHOMETER D1-112-5023

September 15, 2023

My current tach froze this morning at 1600 RPM. Needless to say I was stuck (pun intended). Susan and the team at Mitchell Aircraft helped me diagnose and resolve my problem. They worked with me to get a new tach in the process as quickly as possible. Anyone with an aircraft knows downtime is the norm. But, if there is someone kind and helpful like Susan was today. They can get you back in the air safely and faster. I appreciate their help and will recommend all my fellow aviators that they use Mitchell whenever possible.

Eric B
August 16, 2023

Excellent, worked very well for me

Envibox W Verified Purchase

MITCHELL TACHOMETER D1-112-5025

May 11, 2023

Looks good.

Top F Verified Purchase

MITCHELL TACHOMETER D1-112-5025

March 14, 2023

Untested.

Eric J Verified Purchase

MITCHELL TACHOMETER D1-112-5024

February 3, 2023

Well made, reasonable priced at Aircraft Spruce, highly recommended.

Dave C Verified Purchase

MITCHELL TACHOMETER D1-112-5025

October 26, 2022

Works just as it should. Note it comes with ranger vinyl decals.

Kevin M Verified Purchase

MITCHELL TACHOMETER D1-112-5024

August 18, 2022

So far it seems to be working as expected. Last Mitchell Tach failed at 562 hrs.

Kirk W Verified Purchase

MITCHELL TACHOMETER D1-112-5024

September 28, 2021

Vincent Verified Purchase

MITCHELL TACHOMETER D1-112-5023

September 4, 2021

Works and looks good. Great customer service from Mitchell!

Holder A
December 4, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are silk screen markings internal? Are they specific to each aircraft? What is the standard lead time for custom markings?

Yes, if you add option part number 10-02354 the markings will be internal. They are custom and based on your engine and aircraft information you supply us. Lead time is on average 7 days for these custom range markings.

Q: Are silk screen markings internal? Are they specific to each aircraft? What is the standard lead time for custom markings?

Yes, if you add option part number 10-02354 the markings will be internal. They are custom and based on your engine and aircraft information you supply us. Lead time is on average 7 days for these custom range markings.

Q: What is the difference between Mitchell Tachometer D1-112-5025 and 5026?

Per the supplier: they are the same, there is no difference.

Q: Mitchell Tack # D1-112-5024, p/n 10-24644: Does it come with green band markings to 2700 rpm and hobbs hour read out?

These are available as options: silk range markings use part 10-02354, taped range markings use part number 10-02355, pre-set hours use part number 10-02479. Additional charges will apply. You need to include both the tach part number, 10-24644, and any option parts numbers you would like in the same order.

Q: What is the range or max RPM on model D1-112-5122, which has an avg. cruise rpm of 2050?

The range on all models is 500 to 3500 RPM's.

Q: Can you set the time on the Michell tachs, particularly D1-112-5023? I want to put a new one in but my tach time is 4900 and not sure procedure.

Yes, tach time can be set. It must be requested at the time of order and there is an extra fee that will apply. Add part # 10-02479 to your order if you need the hours set (see options tab).

Q: The over view states that 2-1/4 Tachos are direct replacements for 3-1/2 units to save panel space. What are the part numbers of the 2-1/4 units?

We have added instrument size to the ordering grid. 98480-2 and 10-02046 are the 2-1/4" tachos.

Q: The picture of the Tach shows a green arc from 500 to 2700 and a red line at 2700. Is that part number D1-112-5024 comes if I do not have it altered with different markings?

No, no markings are included. Add part number 10-02354 for range markings.

Q: I need one of these installed on a EASA registered certified aircraft. Does it come with a 8130-3?

No, Export 8130 will need to be requested in the shopping cart, additional charges will apply.

Q: The client would like to order D1-112-5225, Tacho but needs a light. Please confirm whether Mitchell PE-115-4076, 14V L TRY is a light? What does the L try stands for?

L TRY is the tray for the light. you will require both 10-02742 and 10-02741 in order to place the light on the instrument
