|These electric instruments are lighted, allow easy installation, & feature a 2 year factory warranty. Order gauges and senders separately as shown. 12V or 24V operation unless other wise noted. Gauges fit 2-1/4" panel hole.|
Quality instrument at a good price.
This is a good quality instrument. However I’m giving it three stars because it is not made by Michell but rather made by VDO and relabeled, they use a cheap sticker on the face to cover the VDO. On mine the sticker was off and loose in the housing. It also is set back so deeply into the housing that it makes seeing the instrument from an angle difficult. I was disappointed. I think I will save up and install the EI volt/Amp gauge.
Would not fit without extensive panel modifications.
Oops. Wont do that again. What was I thinking buying a 60 dollar gauge for aircraft??? This gauge looks bad right out of the box with the needle pivot off to one side, and the needle slightly to the right to make up the difference. Poor finish for sure. Wont be in my dash, guess maybe its time to fess up some dollars and go to digital gauge James H
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

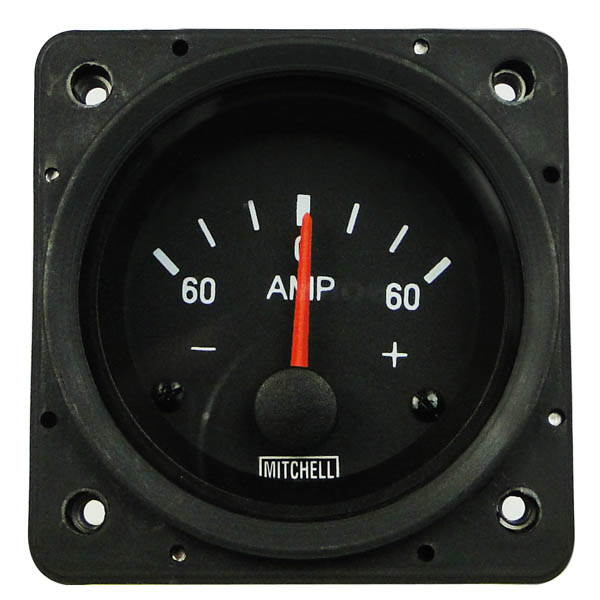

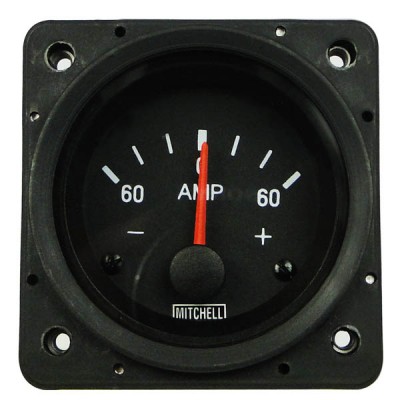

These Mitchell ammeters have their own internal shunt.
Ammeters only measure amps and so can be connected to 12 or 24 volts.
Yes, this part is FAA PMA approved.
No as it has an internal shunt you do not need a sender.
Yes, this has an internal 12v light bulb.
Per the manufacturer you will have a connection for power and ground, the sender and lighting.
The ammeter is FAA PMA approved for use in certified aircraft. It does not have an AML with approved models. It is at the discretion of the A&P installer as to whether the installation is legal.
The voltage also is in regard to the lighting in the unit, but this is an incandescent bulb and would be hooked up to the lighting bus in your aircraft.
This product is FAA PMA meaning it is acceptable for install in certified aircraft but does not have a specific aircraft eligibility list. This should be ok but we always recommend consulting with your A&P before installing any item in a certified airplane.
