Dual Arm Tail Wheel Assemblies 8 Inch Pneumatic Tire

Add to Wishlist
Part# 06-01528

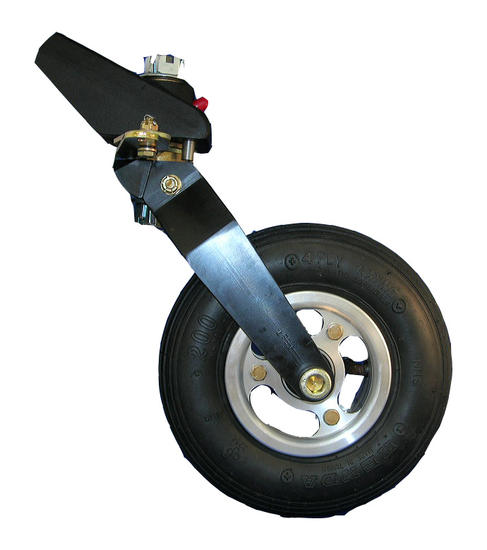

The T-8LD tail wheel utilizes a dual fork configuration and incorporates a geometric release mechanism that allows the wheel to caster after reaching a steered angle of 40 degrees. The WHLTW37 wheel used on the WHLT-8LD has a .625 precision sealed ball bearing which is rigorously tested and designed to resist bearing fatigue providing a long bearing life. The arms and wings of the tail wheel fork assembly are composed of 4130 which is heat treated to a Rockwell 38-43 to ensure strength and are irridited to prevent corrosion. The tail wheel base and forks are cast and then black anodized to prevent corrosion as well. The wheel halves are die cast aluminum for light weight and superior strength. The T-8LD features split rims for ease of mounting and dismounting its 200x50 (8"x2") tire and tube assembly.

The tail wheel assembly is both steerable and full swiveling and provides easy installation with variant spring tension. This wheel has been designed to release with light spring tension and can accommodate either a 1.25 or 1.50 inch wide spring. When a 1.50 inch spring is used, a .25 inch spacer should be used between the base and the spring. The assembly should be mounted on the flat spring so that the pivoting axle is as close to vertical as possible when the plane is loaded. All assembly bushings are made of oil impregnated brass so no lubrication is needed during the life of the tail wheel. In addition, the shaft has been redesigned to .625 for added strength and durability.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.


  • 8 inch pneumatic tire
  • Overall length of 10.8 inches
  • Maximum width of this tail wheel with fully splayed arms: 7 inches
  • Overall height: 10.8 inches
  • This cast aluminum tail wheel weighs 5.4 pounds
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items



Clifford S
August 12, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can this tailwheel be used on certified planes like a Luscombe 8A?

Per the supplier: While it is not specifically FAA Approved, it is possible to get it approved with an FAA Form 337. However, this is rather dependent on the FAA representative being used. If the Luscombe was certified under CAR4, the requirement is less stringent. Refer to CAR4A.477 which specifies the tail wheels that may be of any type or model and are not certificated.

Q: Could this be used on a Piper PA18? I fly a 1957 PA18-95 Cub Special & would rather use this than a Maule.

These are not certified so you would have to do a 337 field approval.
