Home / Landing Gear / Tailwheels / Alaskan Bushwheel /Alaskan Bushwheel 3200 Tailwheel Replacement Parts
Main Image

Alaskan Bushwheel 3200 Tailwheel Replacement Parts

117 Reviews 3 Answered Questions
From $0.09 to $781.00

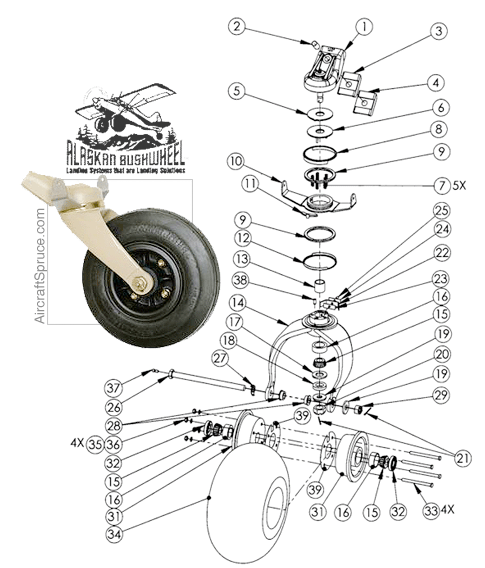

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

Item ABI Part No. Description Part No. Price Buy
1ABI-3216-00BRACKETT ASSY
06-00724
$395.00
Quantity
2ABI-3241-3SSPACER
06-00725
$15.50
Quantity
3ABI-3243-02LEAF SPRING
ADAPTER
1-3/4 TO 1-1/4
06-00810
$84.95
Quantity
4ABI-3243-01LEAF SPRING
ADAPTER
1-3/4 TO 1-1/2
06-00811
$84.95
Quantity
5ABI-3207-00FIBER THRUST
WASHER
06-00726
$10.45
Quantity
6ABI-3235-00THRUST
PLATE ASSY
06-00727
$73.65
Quantity
7ABI-3233-00COMPRESSION
SPRING
06-00728
$5.25
Quantity
8ABI-3256-02HEAVY DUTY
CAP (UPPER)
06-00729
$49.65
Quantity
8AABI-3235-02STANDARD DUST
CAP (UPPER)
06-00813
$47.50
Quantity
9ABI-3206-00THRUST WASHER
06-00730
$22.75
Quantity
10ABI-3214-TQHEAVY DUTY BENT
STANDARD STEERING
ARM ASSY
06-00731
$374.00
Quantity
10AABI-3214-00STANDAR STEERING
ARM ASSY
06-00812
$355.00
Quantity
11ABI-3219-00PAWL
06-00732
$57.75
Quantity
12ABI-3256-1HEAVY DUTY DUST
CAP (LOWER)
06-01264
$49.65
Quantity
12AABI-3235-1STANDARD DUST
CAP (LOWER)
06-00733
$49.95
Quantity
13ABI-3205-00BUSHING
06-00734
$49.65
Quantity
14ABI-F1TAILWHEEL FORK
(HEAVY DUTY)
06-00735
$781.00
Quantity
14AABI-3224STANDARD
TAILWHEEL FORK
06-00736
$457.00
Quantity
15A4050CONE BEARING
13286
$96.75
Quantity
16A4138BEARING
RACE
13287
$92.75
Quantity
17 32ABI-1863GREASE
RETAINER
06-00746
$13.95
Quantity
--U1863ASCOTT TYPE GREASE RETAINER U1863A
1863
$14.50
Quantity
18ABI-2504-1SPACER
06-00752
$23.50
Quantity
19
AN960-816
WASHER
AN960-816
$0.16
Quantity
20
AN320-8
SHEAR NUT
AN320-8
$2.73
Quantity
21
MS24665-283
COTTEN PIN
MS24665-283
$0.15
Quantity
22ABI-3222-00COMPESSION
SPRING
06-00737
$18.95
Quantity
23ABI-3258-00SPACER
06-00738
$3.50
Quantity
24ABI-3258-01SPACER
06-00739
$3.50
Quantity
25ABI-3257-00PIN
06-00740
$11.95
Quantity
27ABI-3225-00TAB LOCK
WASHER
06-00742
$8.85
Quantity
28ABI-3227-00SPACER
06-00743
$36.50
Quantity
2933475-008CASTLE NUT
AN310-8
AN310-8
$4.90
Quantity
30ABI-S2HEAVY DUTY
RIM SPACER
06-00744
$130.80
Quantity
31ABI-3244-00WHEEL HALF
06-00745
$193.75
Quantity
33
AN4-34A
WHEEL BOLT
AN4-34A
$0.99
Quantity
33A
AN4-7A
WHEEL BOLT
AN4-7A
$0.33
Quantity
35
33478-202
SELF LOCKING
NUT
33478-202
$0.19
Quantity
361/4" WASHERFLAT WASHER
AN960-416
$0.09
Quantity
37T7201ZERK FITTING
06-00753
$3.35
Quantity
38ABI-232-046DOWEL PIN
06-00749
$19.75
Quantity
39ABI-2602GASKET
06-00750
$5.35
Quantity
--ABI-3219-02LONG PAWL
05-15182
$61.75
Quantity
--ABI-A4050CONE BEARING
05-15184
$49.65
Quantity
--
AN960-816
WASHER
05-15185
$0.16
Quantity
--
AN320-8
SHEAR NUT
05-15186
$2.73
Quantity
--
AN310-8
CASTLE NUT
05-15188
$4.90
Quantity
--
AN4-7A
WHEEL BOLT
05-15190
$0.33
Quantity
--
AN4-34A
WIDE WHEEL BOLT
05-15191
$2.45
Quantity
--280X2.50X4TUBE
05-15211
$56.75
Quantity
341154.R11" BABY BUSHWHEEL TIRE
05-15215
$649.00
Quantity
--MS21044N4SELF LOCKING NUT
05-15216
$0.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The Alaskan Bushwheel 3200 Tailwheel Assembly Replacement Parts

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

all good

Giacomo A Verified Purchase

Cotter Pin AN380-3-3
May 13, 2025

Ralph S Verified Purchase

ABI Leaf Spring Adapter 1-1/2
April 7, 2025

Great service as usual…can’t fault Aircraft Spruce ..Oz. 😊

Ken E Verified Purchase

ABI 1863 Bearing Race Seal
March 27, 2025

Jeff S Verified Purchase

Washer, Flat AN960-416
March 19, 2025

As advertised

Gail L Verified Purchase

Washer, Flat AN960-816
March 11, 2025

The right size and great quality

Douglas H Verified Purchase

Bolt Undrilled AN4-34A
January 21, 2025

Bolts were available and arrived very quickly-Thank you.

Alan B Verified Purchase

Bolt Undrilled AN4-7A
January 7, 2025

Robert C Verified Purchase

Bolt Undrilled AN4-7A
January 7, 2025

Eddie L Verified Purchase

Washer, Flat AN960-416
December 24, 2024

Y

Aircraft I Verified Purchase

Washer, Flat AN960-416
December 8, 2024

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight of the ABI 3200 tailwheel fully assembled?

The ABI 3200 tailwheel weighs approximately 9 lbs.

Q: Is the PN 06-00724 the direct replacement for Scott 06-01291?

No, these are two different units. 06-00724 is Scott Equiv to 3216-00, which has one mounting hole, and used on 3200, 3224A, & 3200B assemblies. 06-01291 is Scott Equiv to 800613, which has two mounting holes, and used on 3200-3 & 3200-3B series assy's.

Q: What is the size of the tire and why is it not listed?

It is listed towards the bottom of the ordering chart. The part number for the tire is 05-15212 and the part number for the tube is 05-15211. The size is 280 X 2.50 X 4.
