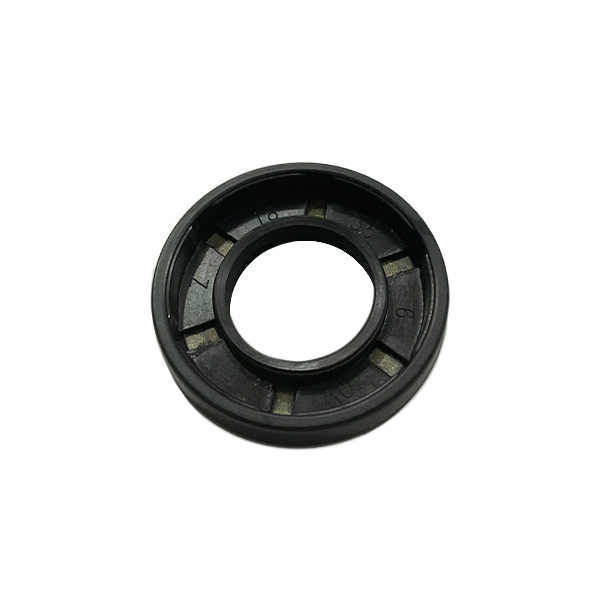

Part# 06-00746
MFR Model# ABI-1863
ItemABI Part No.DescriptionPart No.
17 32ABI-1863GREASE


The Alaskan Bushwheel 3200 Tailwheel Assembly Replacement Parts
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -

Reference Chart


great service from Aircraft Spruce and UPS as usual. Thanks heaps

Brenton S
March 19, 2020

looks good

Walt W
February 6, 2020

Easy to identify and order the replacement part required (bracket assembly)

Paul C
January 12, 2020

Quality tire good price and Aircraft Spruce is a great company to work with.

North-scout A
October 3, 2019

I ordered this part on Sunday evening, and I received it at my office the following Thursday afternoon. I live in Sydney Australia! Great service.

June 20, 2019

Well made cast and machined aluminum bracket, quality black paint, includes main shaft with zerk. Fit onto 50+ year old Scott 3200 fork assembly perfectly. Needed to transfer bolt sleeve bushing from old bracket. Easy to press in. Old leaf spring bracket required some reshaping and filing to fit - because of damage from old broken bracket.

June 18, 2017


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight of the ABI 3200 tailwheel fully assembled?

The ABI 3200 tailwheel weighs approximately 9 lbs.

Q: Is the PN 06-00724 the direct replacement for Scott 06-01291?

No, these are two different units. 06-00724 is Scott Equiv to 3216-00, which has one mounting hole, and used on 3200, 3224A, & 3200B assemblies. 06-01291 is Scott Equiv to 800613, which has two mounting holes, and used on 3200-3 & 3200-3B series assy's.

Q: How much does the 8" bushwheel weigh?

3400 weighs 11lbs and 3400B weighs 13lbs.

Q: What is the size of the tire and why is it not listed?

It is listed towards the bottom of the ordering chart. The part number for the tire is 05-15212 and the part number for the tube is 05-15211. The size is 280 X 2.50 X 4.

Q: What is included in this assembly for the price?

06-01151 is the tailwheel head with the head bolt, grease zerk, and bearing race installed.
