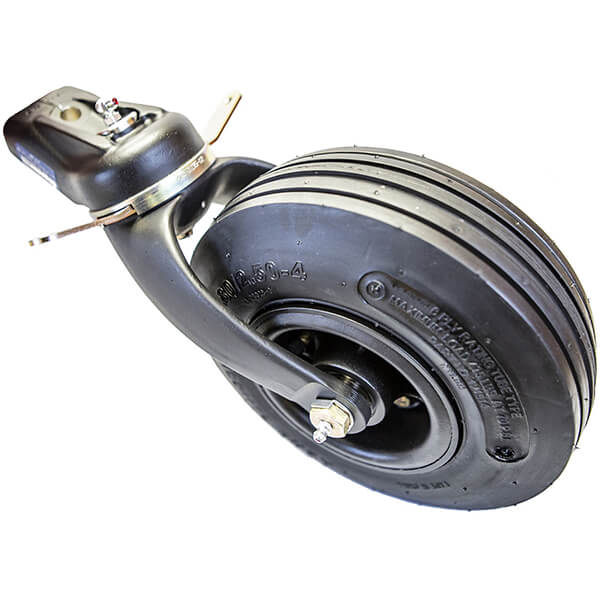

Alaskan Bushwheel 3200 Tailwheel Assembly

Select Model:
ABI-3200ABI-3200-3ABI-3224AABI-3200B
Quantity
Add to Wishlist

Overview

8" Standard tailwheel is assembled with 2.80" x 2.50" x 4" tire. Each assembly is greased and ready for installation.

FAA-PMA direct replacement for Scott 3200 Tailwheel assembly. One Year Warranty.

ABI-3200
This ABI-3200 Assembly is an FAA-PMA direct replacement for Scott 3200 Assembly. The installer is responsible for ensuring that the assembly is installed in accordance with the original equipment installation instructions. The difference between the 3200 & 3224A is the steering arm and dust caps. The 3224A comes with the heavy duty steering arm (ABI-3214T).

ABI-3200-3
The ABI-3200-3 is the direct replacement for the Scott 3200-3. This assembly utilize the ABI-800613, 2-hole bracket assembly instead of the ABI-3216-00

ABI-3224A
STANDARD TAILWHEEL ASSY.
(with 3214T Heavy Duty Arm Assy.)

ABI-3200B
ABI 3200B TUNDRA TAILWHEEL ASSY.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Parts List

*Parts not included in ABI-3200/ABI-3224A Assembly
**Parts not included in ABI-3200B Assembly
****Parts not icluded in assemblies.
Parts in red are not sold individually

ItemABI Part
No.
DescriptionSpruce
Part No.
--
ABI800613-00
PAWNEE 2 - BOLT TRAILWHEEL HEAD
06-00820
1
ABI-3216-00
BRACKET ASSY.
06-00724
2
ABI-3241-3S ****
SPACER
06-00725
3
ABI-3243-02****

LEAF SPRING ADAPTER 1-3/4" TO 1-1/4"

06-00810
4
ABI-3243-01****
LEAF SPRING ADAPTER 1-3/4" TO 1-1/2"
06-00811
5
ABI-3207-00
FIBER THRUST WASHER
06-00726
6
ABI-3235-00
THRUST PLATE ASSY.
06-00727
7
ABI-3233-00
COMPRESSION SPRING
06-00728
8
ABI-3256-02
HEAVY DUTY DUST CAP, UPPER
06-00729
8A
ABI-3235-02
STANDARD DUST CAP, UPPER
06-00813
9
ABI-3206-00
THRUST WASHER
06-00730
10
ABI-3214T
HEAVY DUTY STANDARD
STEERING ARM ASSY
06-00731
10A
ABI-3214-00
STANDARD STANDARD
STEERING ARM ASSY
06-00812
11
ABI-3219-00
PAWL
06-00732
12
ABI-3256-1
HEAVY DUTY DUST CAP,
LOWER
06-01264
12A
ABI-3235-1
STANDARD DUTY DUST CAP,
LOWER
06-00733
13
ABI-3205-00
BUSHING
06-00734
14
ABI-F1*
TAILWHEEL FORK
(Heavy Duty)
06-00735
14A
ABI-3224**
TAILWHEEL FORK (STANDARD)
06-00736
15
A4050
CONE BEARING
13286
16
A4138
BEARING RACE
13287
17
ABI-1863
GREASE RETAINER
06-00752
18
ABI-2504-1
SPACER
06-00752
19
AN960-816
WASHER
AN960-816
20
AN320-8
SHEAR NUT
AN320-8
21
MS24665-283
COTTEN PIN
MS24665-283
22
ABI-3222-00
COMPRESSION SPRING
06-00737
23
ABI-3258-00
SPACER
06-00738
24
ABI-3258-01
SPACER
06-00739
25
ABI-3257-00
PIN
06-00740
26
ABI-872*
Axle
(Heavy Duty / sold in Complete Assembly ONLY)

27
ABI-3225-00
TAB LOCK WASHER
06-00742
28
ABI-3227-00
SPACER
06-00743
29
33475-008
CASTLE NUT (AN310-8)
AN310-8
30
ABI-S2*
RIM SPACER
(Heavy Duty)
06-00744
31
ABI-3244-00
WHEEL HALF
06-00745
32
ABI-7024
BEARING RACE SEAL
06-00746
33
AN4-34A*
WHEEL BOLT
AN4-34A
33A
AN4-7A**
WHEEL BOLT
AN4-7A
34A
280 x 2.50 x 4**
TIRE AND TUBE
06-01244 and 06-00760
35
33478-202
SELF LOCKING NUT
33478-202
36
1/4" WASHER
FLAT WASHER
AN960-416
37
T7201
ZERK FITTING
06-00753
38
ABI-232-046
DOWEL PIN
06-00749
39
ABI-2602**
GASKET
06-00750

Replacements Parts

Click Here
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

very nice top quality ...put it on an air cam

William D Verified Purchase

ABI-3224A TAILWHEEL ASSY

January 2, 2024

very nice product it would be nice if you had a verity of spring steel configurations to mount it .

William D Verified Purchase

ABI-3224A TAILWHEEL ASSY

December 26, 2023

This tail wheel assembly is a top quality part. I fit perfect and the operation on the aircraft was smooth and precise. It solved all my tailwheel shimmy problems.

Vertical F Verified Purchase

ABI-3200 TAILWHEEL ASSY

November 19, 2022

Installation went well, but remember to check if you have the right adapter to fit the width of your tail spring. Too early to tell how well it will hold up, but it looks really solid.

Lynn A
June 14, 2020

Worked perfect!

Thomas S
September 23, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight of the ABI 3200 tailwheel assembly?

The weight of this unit is 8.23lbs

Q: What size is the tire on the 3200B?

2.80" x 2.50" x 4" tire

Q: Is the long paw or short paw in this tail wheel?

This tailwheel is built with a long paw.

Q: Is this a one or two hole mounting?

This is the single bolt hole version. P/N# 06-01313 is the two hole bolt version.

Q: Does it come with a STC?

Yes, this will include the STC.

Q: Does it include wheel and tire?

Yes, the wheel and tire are included.

Q: What is the static load rating for this tailwheel?

Per the manufacturer: We do not have any exact data on that, for the most part I would think the airframe or spring would fail due to static load weight before the tailwheel assembly.

Q: Is 06-00820 ( the one that has two holes) is included in the assembly 06-00836 (ABI-3200)?

You would want ABI-3200-3 our part number 06-01313.
