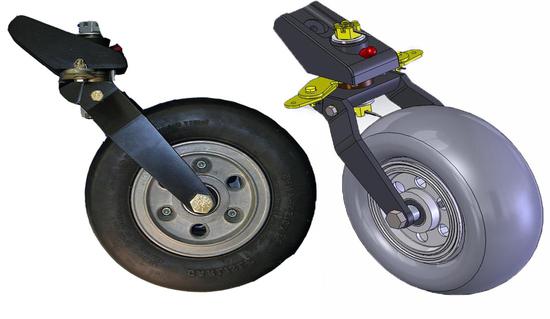

Dual Arm Tail Wheel Assemblies 8.5 Inch Pneumatic Tire

$725.00/Each
Quantity
Add to Wishlist
Part# 06-01531
MFR Model# WHLT-8WD

Overview

The T-8WD tail wheel utilizes a dual fork configuration and incorporates a geometric release mechanism that allows the wheel to caster after reaching a steered angle of 40 degrees. The WHLNW40EE wheel used on the WHLT-8WD has a .625 precision sealed ball bearing which is rigorously tested and designed to resist bearing fatigue providing a long bearing life. The arms and wings of the tail wheel fork assembly are composed of 4130 which is heat treated to a Rockwell 38-43 to ensure strength and are irridited to prevent corrosion. The tail wheel base and forks are cast and then black anodized to prevent corrosion as well. The wheel halves are die cast aluminum for light weight and superior strength. The T-8WD features split rims for ease of mounting and dismounting its 9x3.50-4 tire and tube assembly.

The tail wheel assembly is both steerable and full swiveling and provides easy installation with variant spring tension. This wheel has been designed to release with light spring tension and can accommodate either a 1.25 or 1.50 inch wide spring. When a 1.50 inch spring is used, a .25 inch spacer should be used between the base and the spring. The assembly should be mounted on the flat spring so that the pivoting axle is as close to vertical as possible when the plane is loaded. All assembly bushings are made of oil impregnated brass so no lubrication is needed during the life of the tail wheel. In addition, the shaft has been redesigned to .625 for added strength and durability.

Specifications

  • 8.5 inch pneumatic tire
  • Overall length of 11.7 inches
  • Maximum width of this tail wheel with fully splayed arms: 7 inches
  • Overall height is 11.9 inches
  • This cast aluminum tail wheel weighs 8.3 pounds
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

perfect and quick organisation!! thx lot, good job!!

Tom W
September 28, 2020

Jerry W Verified Purchase

MATCO PNEU TAILWHEEL WHLT-8WD

November 16, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: it says the width of the 11 assembly and the 8.5 assembly are the same. Is that correct, both foot prints of the actual tire are the same? What is the size tire and wheel of the 8.5 assembly?

The tire on the 8.5 assembly is 9x3.50-4 and has about a 3.5" width. The tire used on the 11 assembly is 11x6-5 and it is about 11" outside diameter and 6" width. The tire on the 11 is larger and wider than the tire on the 8.5.

Q: What is your tire and tube replacement part number for this Wheel?

This uses a 9x3.50-4 tire and tube. We do not stock it. Please contact our sales department for special order lead time and price.
