MC6160-071CB072 PUSH TO UNLOCK

$94.75/Each
Part# 05-04610
MFR Model# MC6160-071CB072

Overview

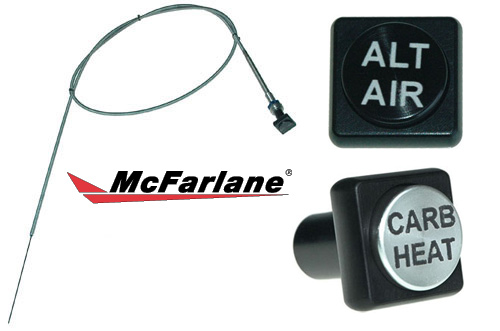

Perfect for carburetor heat or alternate air controls for the experimental/homebuilt market. These are identical to the MC6150 controls but have a square knob. Available with black knob and black or clear (silver) anodized aluminum push-button.
  • Quality stainless steel construction
  • Teflon™ lined for smooth operation
  • 15 lb. locking force
  • Heavy duty 0.071 inch wire for strength and long life
  • 3" maximum travel
Custom laser marking of the knobs as in sample photo is available per knob. Receive a $15.00 discount for each additional knob with the same design.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Features

  • Quality stainless steel construction
  • Teflon™ lined for smooth operation
  • Heavy duty for strength and long life
  • Available in 6, 8, and 12 foot lengths
  • May be trimmed to length
  • Anodized aluminum square black knobs with black or clear (silver) push buttons
  • Meets FAA regulation 23.781 for carb heat and alt air control knob shape

Specifications

  • Conduit: 0.24 inch OD Teflon™ lined wound conduit
  • Inner wire: 0.071 inch diameter music wire
  • Travel (stroke): 3" maximum
  • Maximum work loads: 25lbs (Pull), 10lbs * (Push)- Max push load dependent on wire size, length of trimmed wire (unsupported by conduit), geometry of wire rigging, and configuration of actuator
  • Operating temp: -65 to 450 F (Operating temperature of knob/guide tube assembly: -65 to 250 F)
